Thomas & Betts Co - Thomas & Betts A18-6 22 to 16 AWG #6 Stud Metallic Electrotinned Copper Non-Insulated Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210802985
Catalog Number - A18-6
Color - Metallic
Conductor Size - 22-16 AWG
ERP_productname - TBCO A186 RING TONGUE TERMINAL
Packaging
1 ea
EAN
05414363147145
Part #
208237
Catalog #
A186
Commercial reference
A186
12-Digit UPC:
786210802985
Catalog Number:
A18-6
Color:
Metallic
Conductor Size:
22-16 AWG
ERP_productname:
TBCO A186 RING TONGUE TERMINAL
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Heights:
3 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
1.63 in
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_25698244

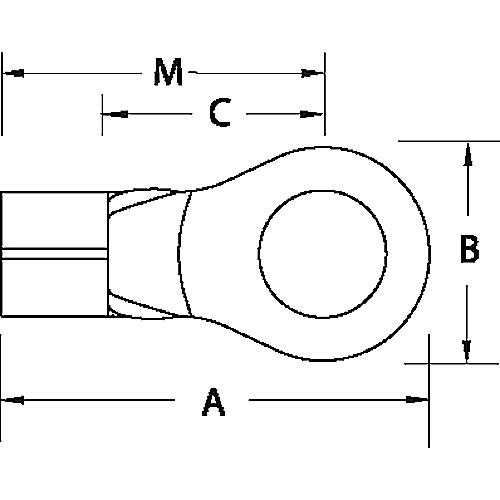

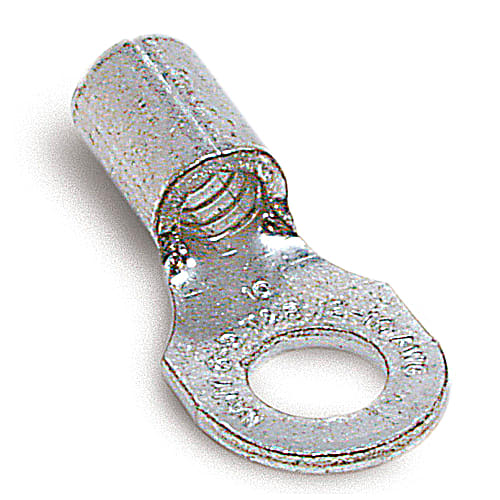

Non-Insulated Ring Terminal, Length .72 Inches, Width .25 Inches, Bolt Hole #6, Wire Range #22-#16 AWG, Copper, Tin Plated Certifications: UL; CSA - Features: These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
