Thomas & Betts Co - Thomas & Betts C10-516 12 to 10 AWG 5/16 Stud Inch Metallic Electrotinned Copper Non-Insulated Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210803555
Catalog Number - C10-516
Color - Metallic
Conductor Size - 12-10 AWG
ERP_productname - TBCO C10516 12-10 BARE RING TERM
Packaging
1 ea
EAN
05414363148920
Part #
208563
Catalog #
C10516
Commercial reference
C10516
12-Digit UPC:
786210803555
Catalog Number:
C10-516
Color:
Metallic
Conductor Size:
12-10 AWG
ERP_productname:
TBCO C10516 12-10 BARE RING TERM
Family Brand Name:
ABB
Finish:
Tin Plated
Heights:
3 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
1.63 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_28944261

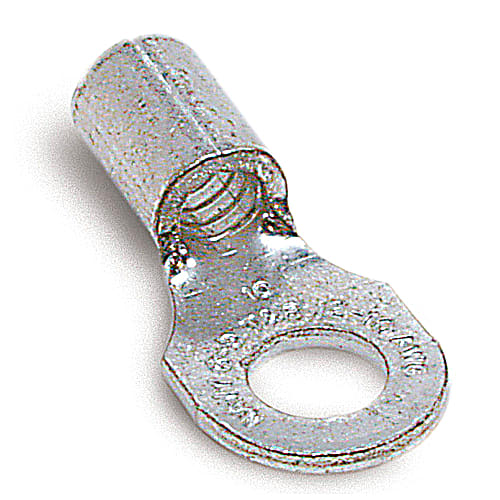

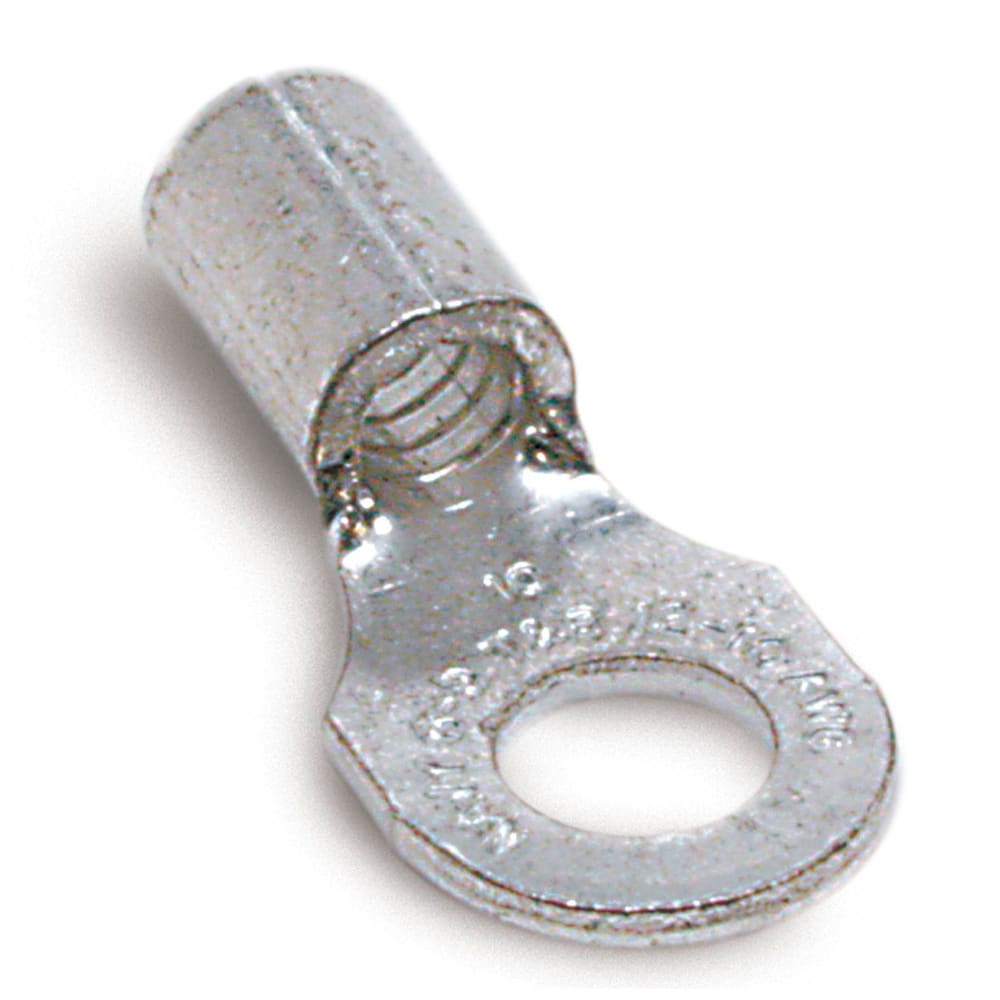

Non-Insulated Ring Terminal, Length .98 Inches, Width .50 Inches, Bolt Hole 5/16 Inch, Wire Range #12-#10 AWG, Copper, Tin Plated Certifications: UL; CSA - Features: These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
