Thomas & Betts Co - Thomas & Betts D8-10 #8 AWG Wire Range #10 Bolt Hole Non-Insulated Brazed Seam Metallic Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210803531
Catalog Number - D8-10
Color - Metallic
Conductor Size - 8 AWG
ERP_productname - TBCO D810 STAKON TERM
Packaging
1 ea
EAN
05414363077275
Part #
208691
Catalog #
D810
Commercial reference
D810
12-Digit UPC:
786210803531
Catalog Number:
D8-10
Color:
Metallic
Conductor Size:
8 AWG
ERP_productname:
TBCO D810 STAKON TERM
Family Brand Name:
ABB
Finish:
Tin Plated
Heights:
2.9 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
1.1 in
Wire Size:
8 AWG
SoneparProductId:
SKU_US_25605854

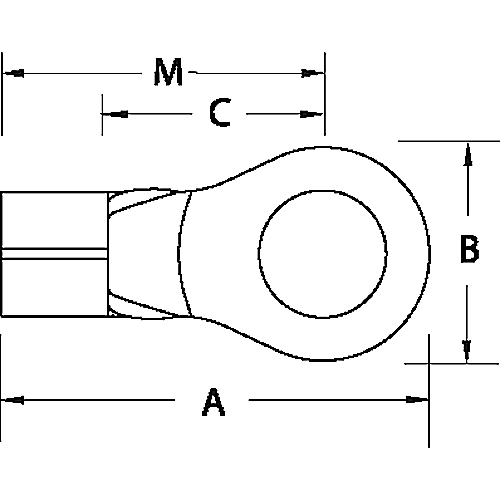

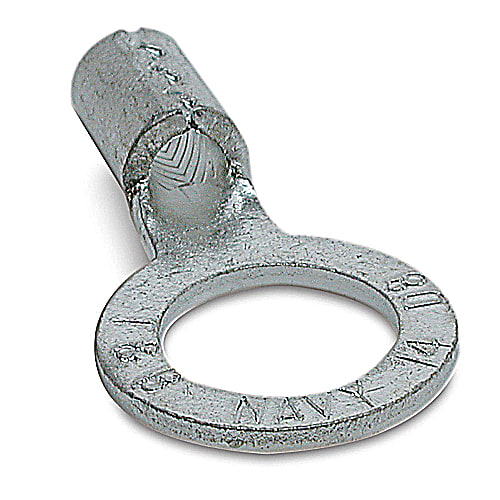

Non-Insulated Large Brazed Seam Ring Terminal, Length 1.09 Inches, Width .42 Inches, Bolt Hole #10, Wire Range #8 AWG, Copper, Tin Plated Certifications: UL; CSA - Notes: Not available on Mylar Tape. - Features: These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
