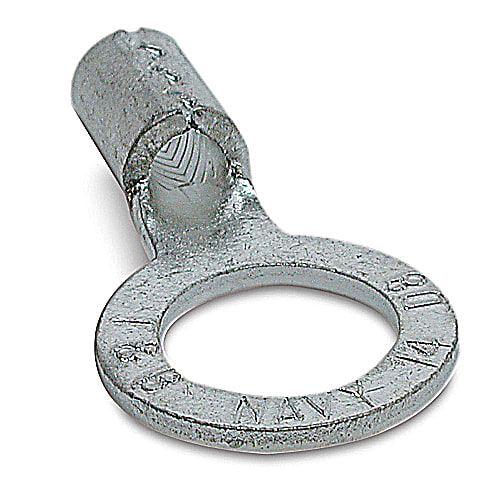

Thomas & Betts Co - Thomas & Betts D8-38 #8 AWG Wire Range 3/8 Inch Bolt Non-Insulated Brazed Seam Metallic Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210804491
Catalog Number - D8-38
Color - Metallic
Conductor Size - 8 AWG
ERP_productname - TBCO D838 9-7 BARE RING TERM
Packaging
1 ea
EAN
05414363150152
Part #
208696
Catalog #
D838
Commercial reference
D838
12-Digit UPC:
786210804491
Catalog Number:
D8-38
Color:
Metallic
Conductor Size:
8 AWG
ERP_productname:
TBCO D838 9-7 BARE RING TERM
Family Brand Name:
ABB
Finish:
Tin Plated
Heights:
2.9 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Long Sleeve
Voltage:
600 Volt
Widths:
1.1 in
Wire Size:
8 AWG
SoneparProductId:
SKU_US_25554602
Non-Insulated Large Brazed Seam Ring Terminal, Length 1.32 Inches, Width .59 Inches, Bolt Hole 3/8 Inch, Wire Range #8 AWG, Copper, Tin Plated Certifications: CSA; UL - Features: These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire. - Notes: Not available on Mylar Tape.
