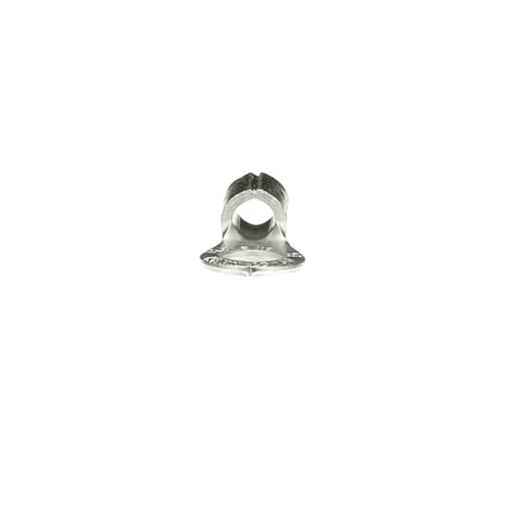

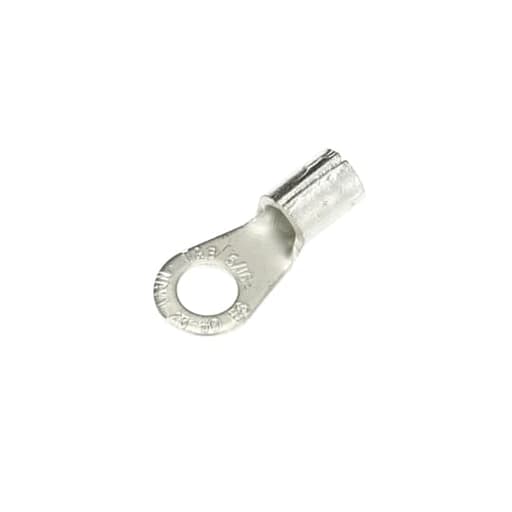

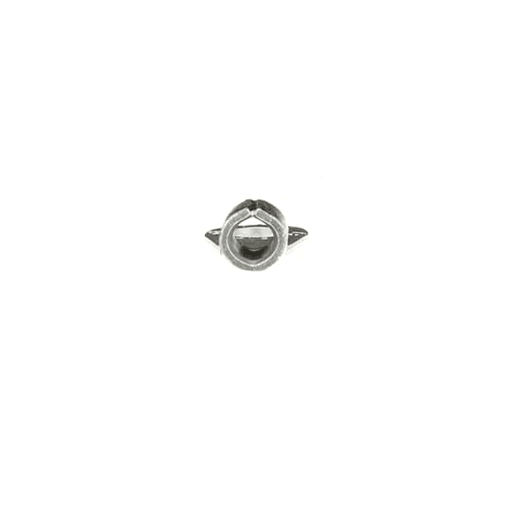

Thomas & Betts Co - Thomas & Betts E6-516 Non-Insulated Large Ring Terminal - #6, 5/16"bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210803609
Catalog Number - E6-516
Color - Metallic
Conductor Size - 6 AWG
ERP_productname - TBCO E6516 STAKON TERM
Packaging
1 ea
EAN
05414363150534
Part #
208719
Catalog #
E6516
Commercial reference
E6516
12-Digit UPC:
786210803609
Catalog Number:
E6-516
Color:
Metallic
Conductor Size:
6 AWG
ERP_productname:
TBCO E6516 STAKON TERM
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Heights:
2.9 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
1.1 in
Wire Size:
6 AWG
SoneparProductId:
SKU_US_28943745
Non-Insulated Large Brazed Seam Ring Terminal, Length 1.32 Inches, Width .60 Inches, Bolt Hole 5/16 Inch, Wire Range #6 AWG, Copper, Tin Plated, 20 Pack Certifications: UL; CSA - Notes: Not available on Mylar Tape. - Features: These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
