Thomas & Betts Co - Thomas & Betts F2022 .61 Inch Length 20 AWG .5 mm.. Wire Range Nylon Insulated Ferrule
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210339870
Catalog Number - F2022
Color - White
Conductor Size - 20 AWG
ERP_productname - TBCO F2022 INS NYL FERRULE 20, .5 MM2, LG .61
Packaging
1 ea
EAN
05414363151067
Part #
116971
Catalog #
F2022
Commercial reference
F2022
12-Digit UPC:
786210339870
Catalog Number:
F2022
Color:
White
Conductor Size:
20 AWG
ERP_productname:
TBCO F2022 INS NYL FERRULE 20, .5 MM2, LG .61
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Material:
Copper
Overall Length:
0.61 in
Sub Brand:
Sta-Kon®
Type:
Polypropylene Insulated Ferrule
Wire Size:
20 AWG
SoneparProductId:
SKU_US_26101929

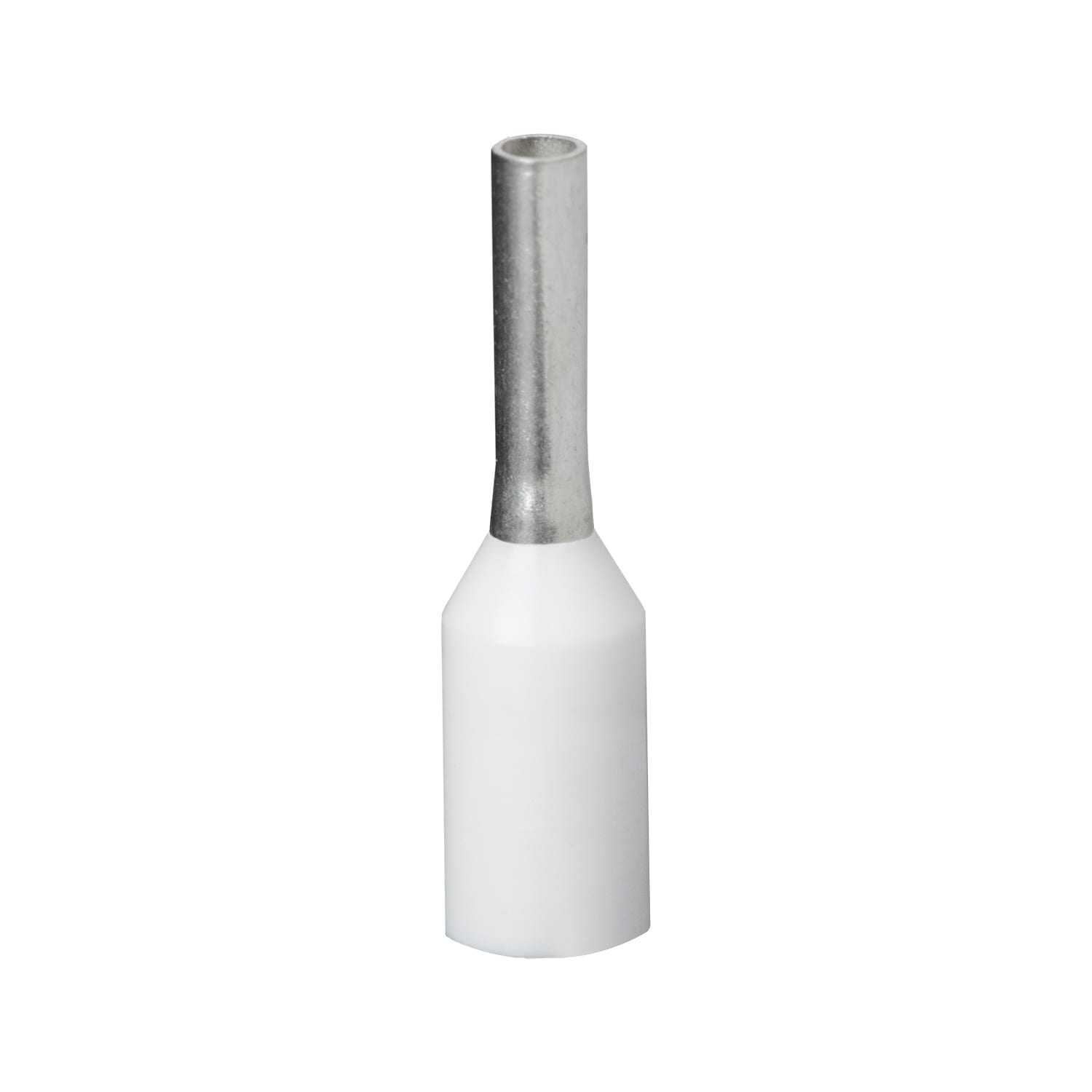

Polypropylene-Insulated Ferrule, Total Length .610 Inches/15.5mm, Pin Length .394 Inches/10mm, Pin Diameter .043 Inches/1.1mm, Base Diameter .098 Inches/2.5mm, Wire Range 20 AWG/.5mm2, Color White, Copper, Tin Plated Features: Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks. - Notes: Ferrule dimensions conform to DIN 46228, Part 4.
