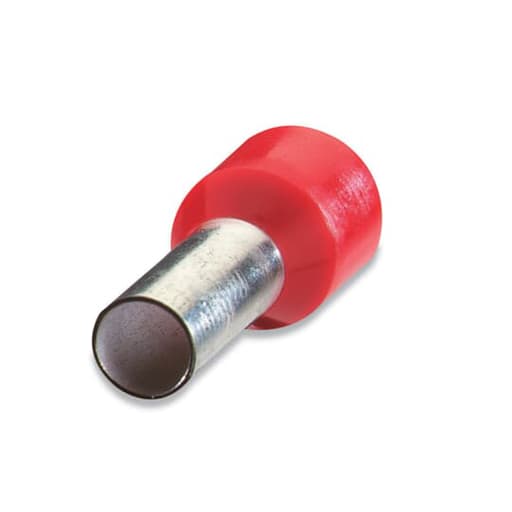

Thomas & Betts Co - Thomas & Betts F2027 18 to 17 AWG 0.492 Inch Red Electrotinned Copper Nylon Insulated Ferrule
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210339962
Catalog Number - F2027
Color - Red
Conductor Size - 18-17 AWG
ERP_productname - TBCO F2027 INS NYL FERRULE 18-17, 1 MM2, LG .4
Packaging
1 ea
EAN
05415022204025
Part #
116978
Catalog #
F2027
Commercial reference
F2027
12-Digit UPC:
786210339962
Catalog Number:
F2027
Color:
Red
Conductor Size:
18-17 AWG
ERP_productname:
TBCO F2027 INS NYL FERRULE 18-17, 1 MM2, LG .4
Family Brand Name:
ABB
Finish:
Tin Plated
Material:
Copper
Overall Length:
0.492 in
Sub Brand:
Sta-Kon®
Type:
Standard
Voltage:
300 VAC
Wire Size:
18-17 AWG
SoneparProductId:
SKU_US_26046888

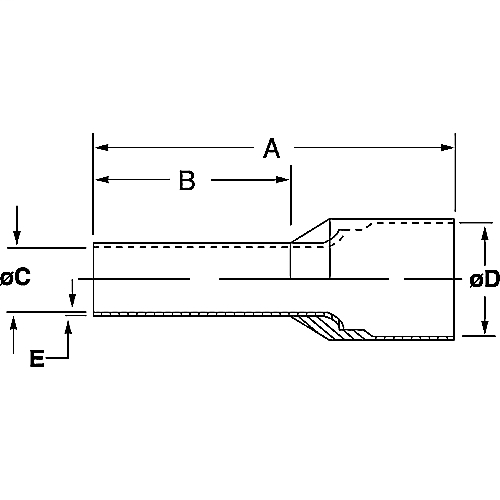

Polypropylene-Insulated Ferrule, Total Length .492 Inches/12.5mm, Pin Length .236 Inches/6mm, Pin Diameter .059 Inches/1.5mm, Base Diameter .118 Inches/3.0mm, Wire Range 18 AWG/1.00mm2, Color Red, Copper, Tin Plated Features: Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks. - Notes: Ferrule dimensions conform to DIN 46228, Part 4.
