Thomas & Betts Co - Thomas & Betts F2030 Insulated Ferrule - #18, .728", Red (500/Pkg)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210335032
Catalog Number - F2030
Color - Red
Conductor Size - 18-17 AWG
ERP_productname - TBCO F2030 INS PP FERRULE 18-17, 1 MM2, LG .7
Packaging
1 ea
EAN
05414363151098
Part #
151672
Catalog #
F2030
Commercial reference
F2030
12-Digit UPC:
786210335032
Catalog Number:
F2030
Color:
Red
Conductor Size:
18-17 AWG
ERP_productname:
TBCO F2030 INS PP FERRULE 18-17, 1 MM2, LG .7
Family Brand Name:
ABB
Finish:
Tin Plated
Material:
Copper
Overall Length:
0.728 in
Sub Brand:
Sta-Kon®
Type:
Standard
Voltage:
300 VAC
Wire Size:
18-17 AWG
SoneparProductId:
SKU_US_25613930

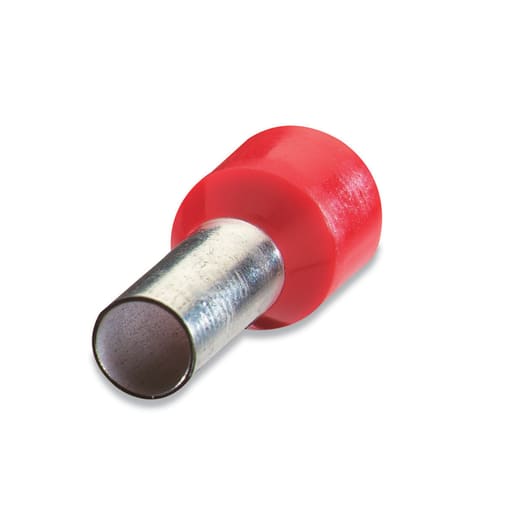

Polypropylene-Insulated Ferrule, Total Length .728 Inches/18.5mm, Pin Length .472 Inches/12mm, Pin Diameter .059 Inches/1.5mm, Base Diameter .118 Inches/3.0mm, Wire Range 18 AWG/1.00mm2, Color Red, Copper, Tin Plated Features: Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
