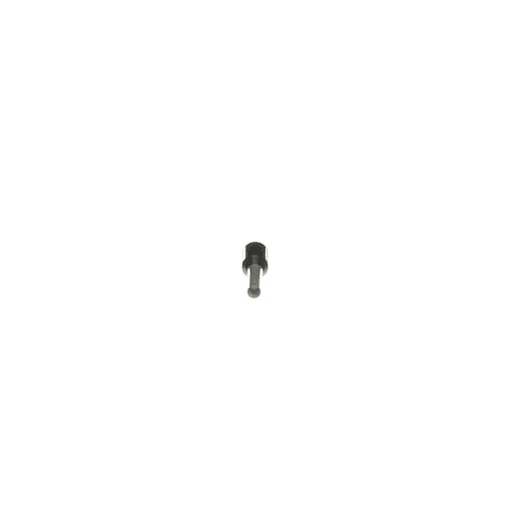

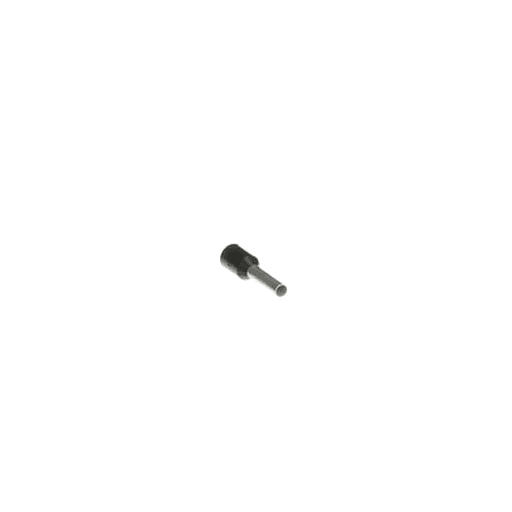

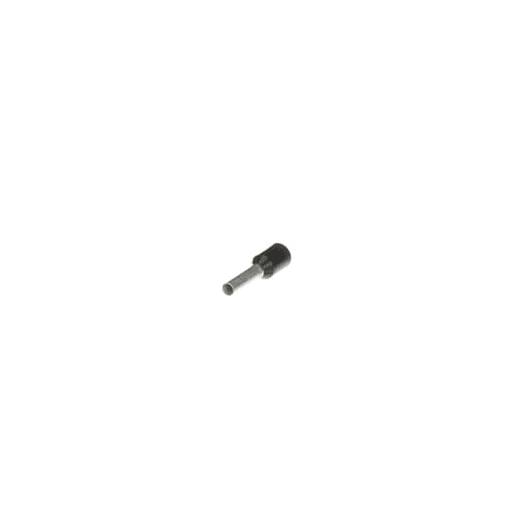

Thomas & Betts Co - Thomas & Betts F2031 Insulated Ferrule - #16, .571", Black (500/Pkg)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210335056
Catalog Number - F2031
Color - Black
Conductor Size - 16 AWG
ERP_productname - CARB F2031 INS PP FERRULE 16, 1.5 MM2, LG .57
Packaging
1 ea
EAN
05415022180626
Part #
241210
Catalog #
F2031
Commercial reference
F2031
12-Digit UPC:
786210335056
Catalog Number:
F2031
Color:
Black
Conductor Size:
16 AWG
ERP_productname:
CARB F2031 INS PP FERRULE 16, 1.5 MM2, LG .57
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Material:
Copper
Overall Length:
0.57 in
Sub Brand:
Sta-Kon®
Type:
Polypropylene Insulated Ferrule
Wire Size:
16 AWG
SoneparProductId:
SKU_US_25492324
Polypropylene-Insulated Ferrule, Total Length .571 Inches/14.5mm, Pin Length .315 Inches/8mm, Pin Diameter .071 Inches/1.8mm, Base Diameter .134 Inches/3.4mm, Wire Range 16 AWG/1.50mm2, Color Black, Copper, Tin Plated Features: Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks. - Notes: Ferrule dimensions conform to DIN 46228, Part 4.
