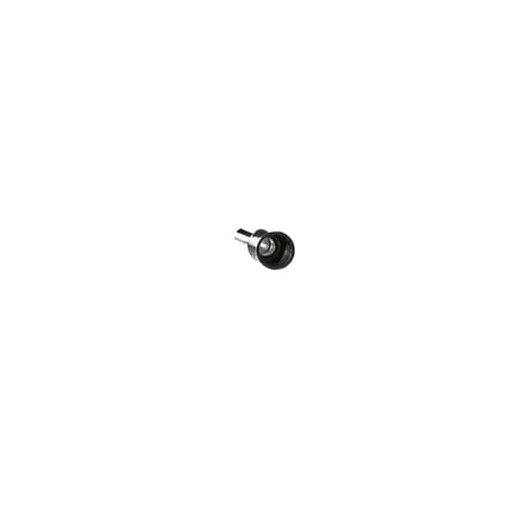

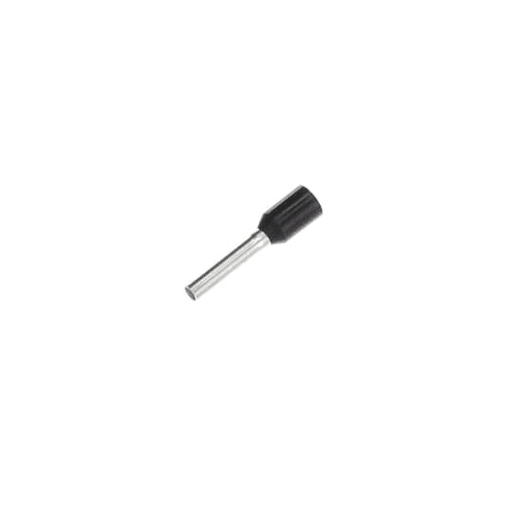

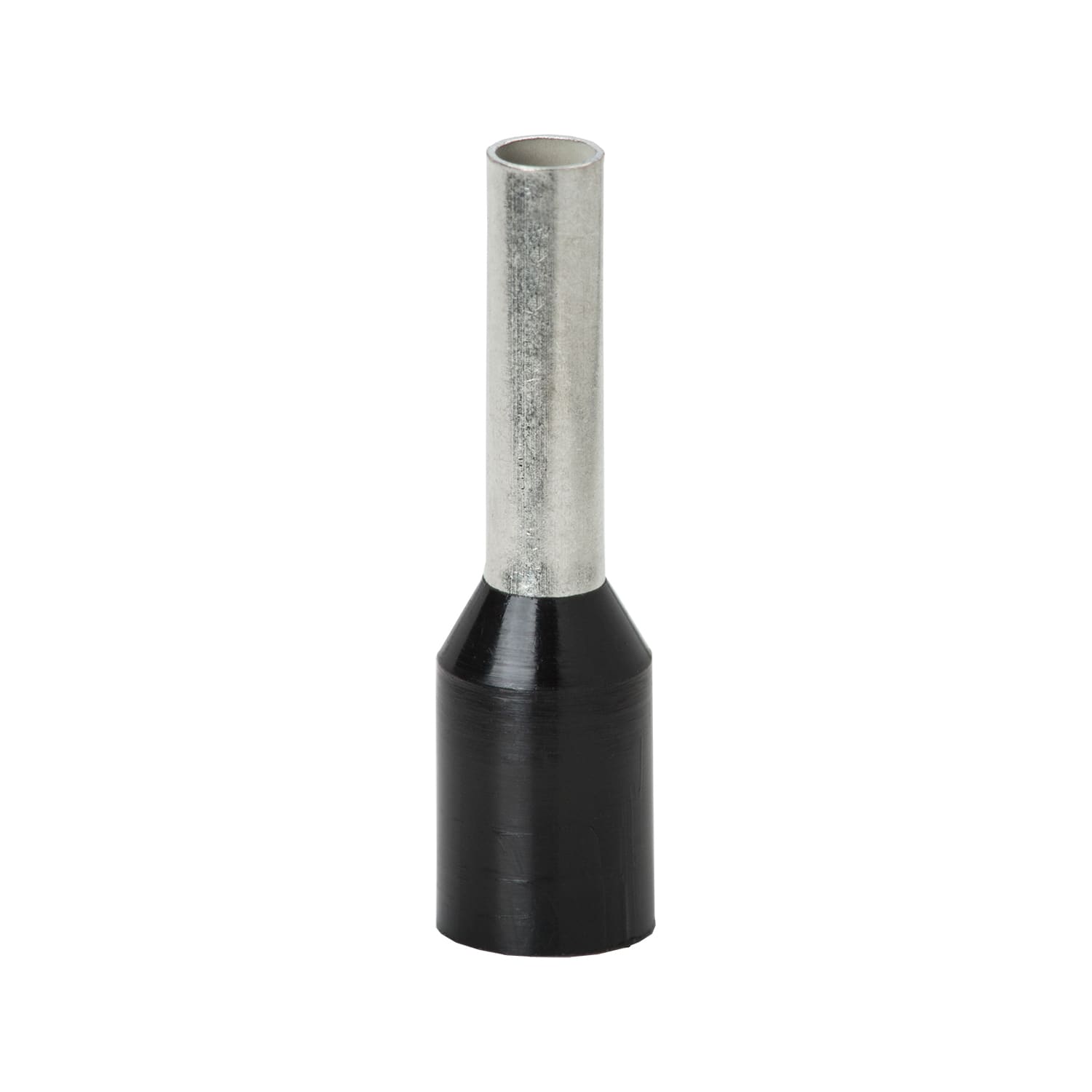

Thomas & Betts Co - Thomas & Betts F2032 .65 Inch Length 16 AWG 1.5 mm.. Wire Range Insulated Nylon Ferrule
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210358369
Catalog Number - F2032
Color - Black
Conductor Size - 16 AWG
ERP_productname - TBCO F2032 INS PP FERRULE 16, 1.5 MM2, LG .65
Packaging
1 ea
EAN
05414363151104
Part #
193136
Catalog #
F2032
Commercial reference
F2032
12-Digit UPC:
786210358369
Catalog Number:
F2032
Color:
Black
Conductor Size:
16 AWG
ERP_productname:
TBCO F2032 INS PP FERRULE 16, 1.5 MM2, LG .65
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Material:
Copper
Overall Length:
0.65 in
Sub Brand:
Sta-Kon®
Type:
Polypropylene Insulated Ferrule
Wire Size:
16 AWG
SoneparProductId:
SKU_US_25373264
Polypropylene-Insulated Ferrule, Total Length .650 Inches/16.5mm, Pin Length .394 Inches/10mm, Pin Diameter .071 Inches/1.8mm, Base Diameter .134 Inches/3.4mm, Wire Range 16 AWG/1.50mm2, Color Black, Copper, Tin Plated Features: Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks. - Notes: Ferrule dimensions conform to DIN 46228, Part 4.
