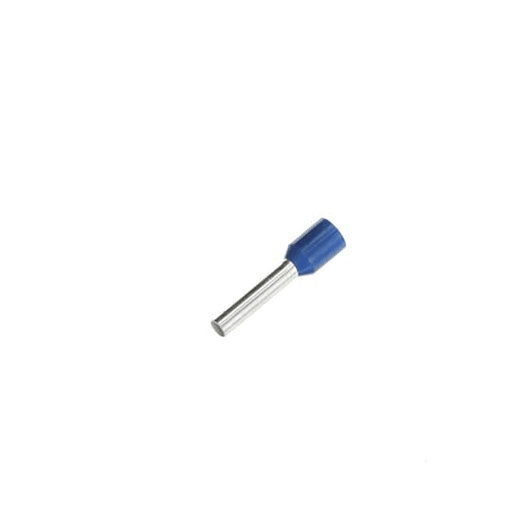

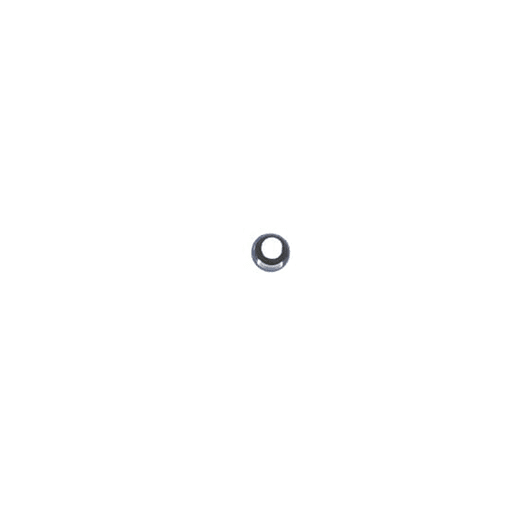

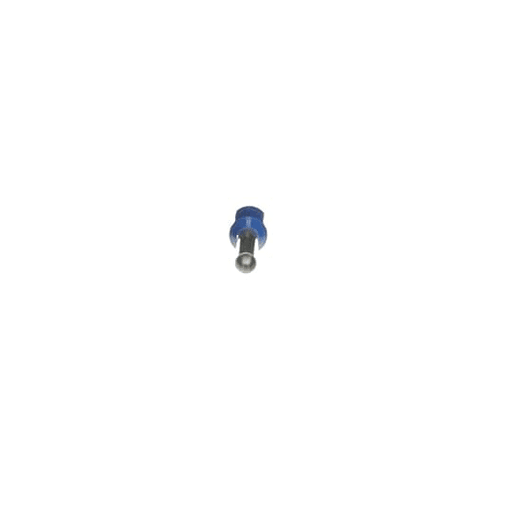

Thomas & Betts Co - Thomas & Betts F2036 0.748 Inch Length 14 AWG 2.5 mm.. Wire Range Nylon Insulated Ferrule
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210335162
Catalog Number - F2036
Color - Blue
Conductor Size - 14 AWG
ERP_productname - TBCO F2036 INS PP FERRULE 14, 2.5 MM2, LG .74
Packaging
1 ea
EAN
05414363151128
Part #
193141
Catalog #
F2036
Commercial reference
F2036
12-Digit UPC:
786210335162
Catalog Number:
F2036
Color:
Blue
Conductor Size:
14 AWG
ERP_productname:
TBCO F2036 INS PP FERRULE 14, 2.5 MM2, LG .74
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Material:
Copper
Overall Length:
0.74 in
Sub Brand:
Sta-Kon®
Type:
Polypropylene Insulated Ferrule
Wire Size:
14 AWG
SoneparProductId:
SKU_US_26070571
Polypropylene-Insulated Ferrule, Total Length .748 Inches/19mm, Pin Length .472 Inches/12mm, Pin Diameter .091 Inches/2.3mm, Base Diameter .165 Inches/4.2mm, Wire Range 14 AWG/2.50mm2, Color Blue, Copper, Tin Plated Features: Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks. - Notes: Ferrule dimensions conform to DIN 46228, Part 4.
