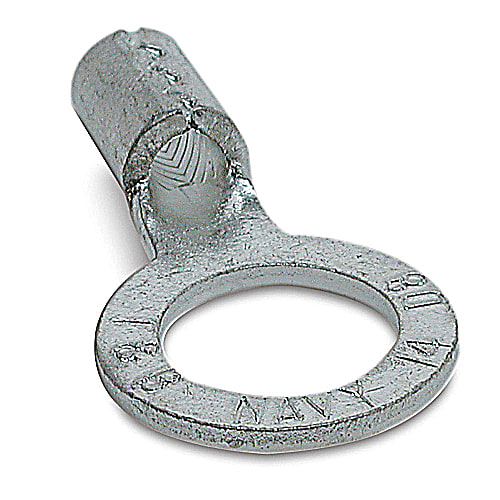

Thomas & Betts Co - Thomas & Betts F4-14 #4 AWG Wire Range 1/4 Inch Bolt Hole Non-Insulated Brazed Seam Metallic Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210803623
Catalog Number - F4-14
Color - Metallic
Conductor Size - 4 AWG
ERP_productname - TBCO F414 4-3 BARE RING TERMINAL
Packaging
20 ea
EAN
05414363151234
Part #
208752
Catalog #
F414
Commercial reference
F414
12-Digit UPC:
786210803623
Catalog Number:
F4-14
Color:
Metallic
Conductor Size:
4 AWG
ERP_productname:
TBCO F414 4-3 BARE RING TERMINAL
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Heights:
2.9 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Long Sleeve
Voltage:
600 Volt
Widths:
1.1 in
Wire Size:
4 AWG
SoneparProductId:
SKU_US_27159949
Non-Insulated Large Brazed Seam Ring Terminal, Length 1.16 Inches, Width .48 Inches, Bolt Hole 1/4 Inch, Wire Range #4 AWG, Copper, Tin Plated, 20 Pack Notes: Not available on Mylar Tape. - Certifications: CSA; UL - Features: These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
