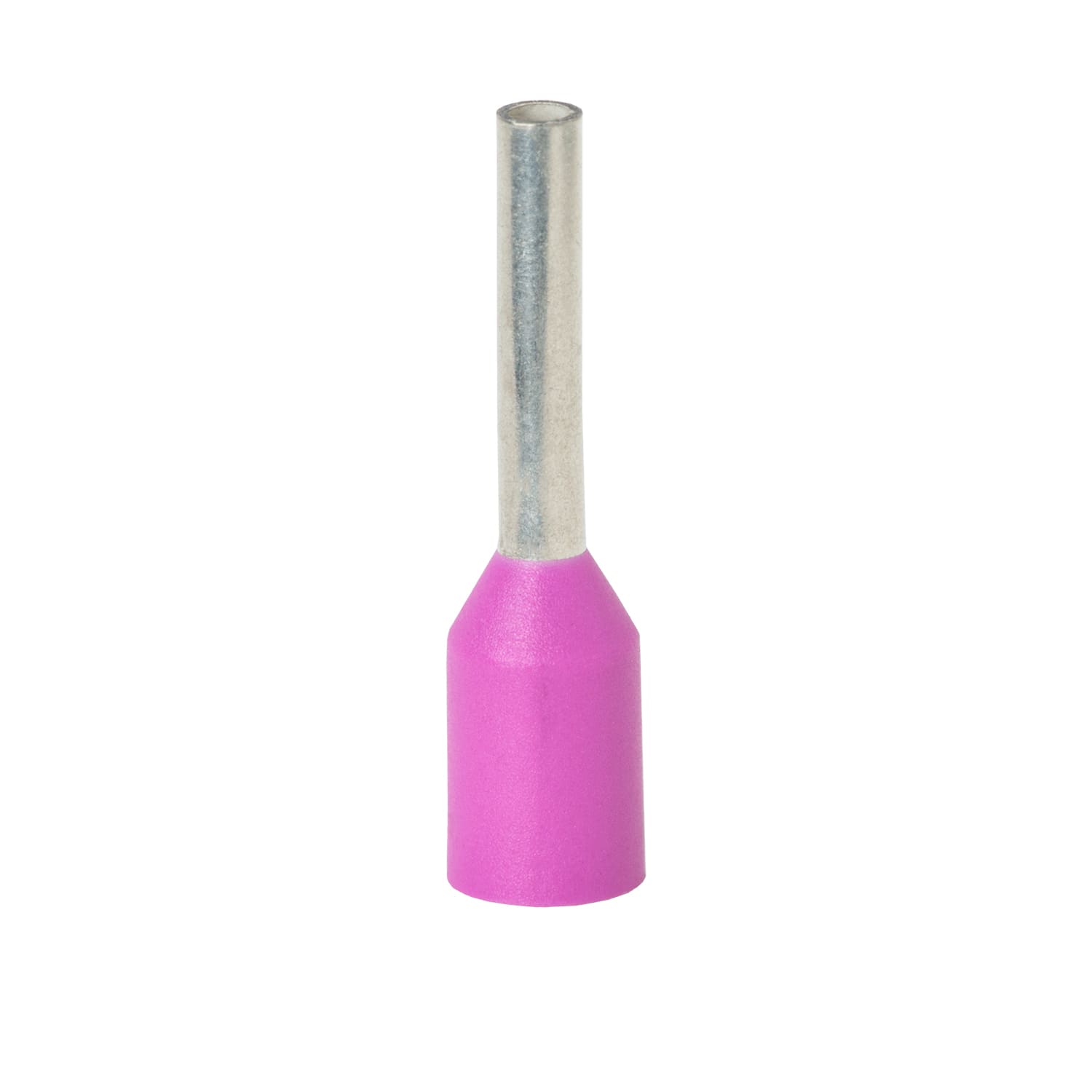

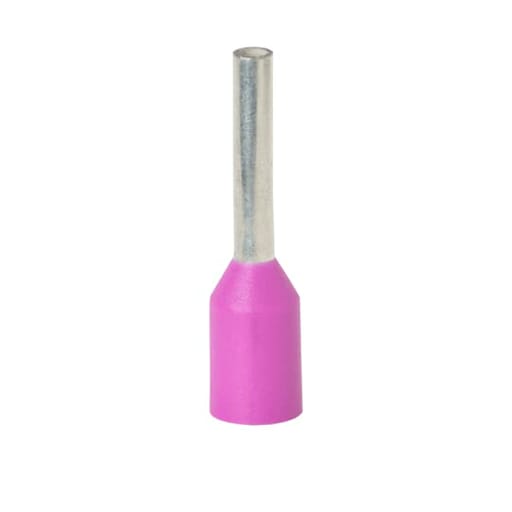

Thomas & Betts Co - Thomas & Betts F4009 22 AWG .34 mm.. Wire Range Nylon Insulated Old DIN Ferrule
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210729671
Catalog Number - F4009
Color - Purple
Conductor Size - 22 AWG
ERP_productname - TBCO F4009 INS PP OLD DIN FERRULE NO22 0.34MM2
Packaging
1 ea
EAN
05415022255287
Part #
214313
Catalog #
F4009
Commercial reference
F4009
12-Digit UPC:
786210729671
Catalog Number:
F4009
Color:
Purple
Conductor Size:
22 AWG
ERP_productname:
TBCO F4009 INS PP OLD DIN FERRULE NO22 0.34MM2
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Polypropylene Insulated Ferrule
Wire Size:
22 AWG
SoneparProductId:
SKU_US_29979772

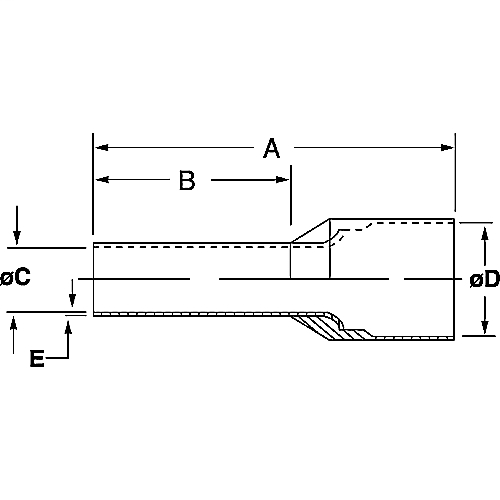

Polypropylene-Insulated Ferrule, Total Length .492 Inches/12.5mm, Pin Length .315 Inches/8.0mm, Pin Diameter .031 Inches/.8mm, Base Diameter .079 Inches/2.0mm, Wire Range #22 AWG/.34mm2, Color Purple, Copper, Tin Plated Features: Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks. - Notes: Ferrule dimensions conform to DIN 46228, Part 4.
