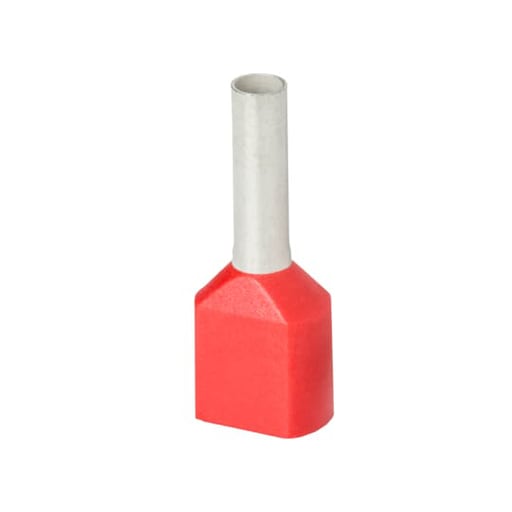

Thomas & Betts Co - Thomas & Betts F8003 Insulated Twin Ferrule - 2x #17, .591", Red (500/Pkg)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210335636
Catalog Number - F8003
Color - Red
Conductor Size - 17 AWG
ERP_productname - TBCO F8003 INS PP TWIN FERRULE 2X17, 2X1.00 M
Packaging
1 ea
EAN
05415022157659
Part #
193112
Catalog #
F8003
Commercial reference
F8003
12-Digit UPC:
786210335636
Catalog Number:
F8003
Color:
Red
Conductor Size:
17 AWG
ERP_productname:
TBCO F8003 INS PP TWIN FERRULE 2X17, 2X1.00 M
Family Brand Name:
ABB
Finish:
Tin Plated
Material:
Copper
Number of Conductors:
2
Overall Length:
0.591 in
Sub Brand:
Sta-Kon®
Type:
Polypropylene Insulated Twin Ferrule
Voltage:
300 Volt
Wire Size:
2x17 AWG
SoneparProductId:
SKU_US_31895795

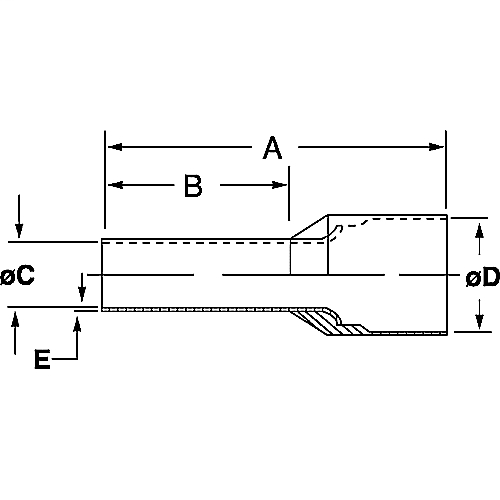

Polypropylene Insulated Twin Ferrule, Length .591 Inches/15mm, Pin Length .315 Inches/8mm, Pin Diameter .081 Inches/2.05mm, Base Diameter .201 Inches/5.1mm, Conductor Range 2x17 AWG/2x1.00mm2, Color Red, Copper, Tin Plated Features: Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks. - Notes: Ferrule dimensions conform to DIN 46228, Part 4.
