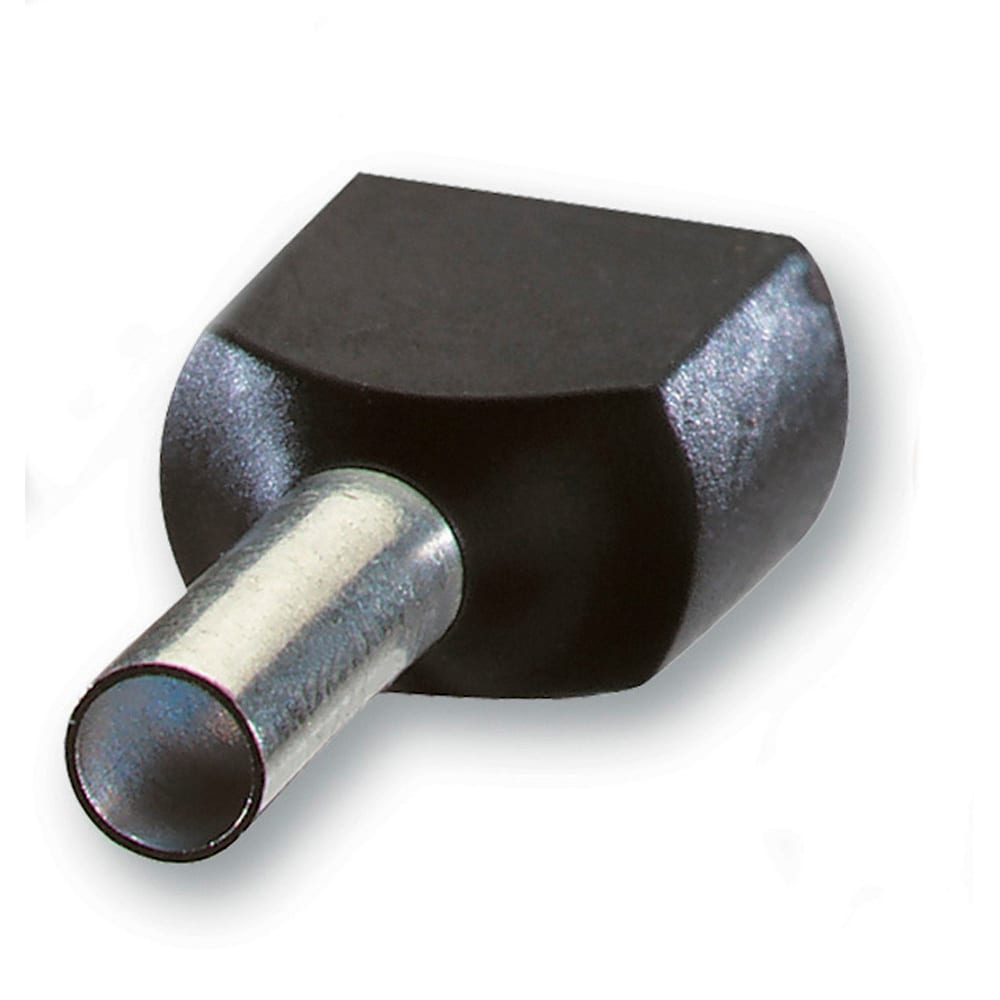

Thomas & Betts Co - Thomas & Betts F8006 16 to 2 AWG 0.630 Inch Black Electrotinned Copper Nylon Insulated Twin Ferrule
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210335674
Catalog Number - F8006
Color - Black
Conductor Size - 16 AWG
ERP_productname - TBCO F8006 INS PP TWIN FERRULE 2X16, 2X1.50 M
Packaging
1 ea
EAN
05415022157871
Part #
193116
Catalog #
F8006
Commercial reference
F8006
12-Digit UPC:
786210335674
Catalog Number:
F8006
Color:
Black
Conductor Size:
16 AWG
ERP_productname:
TBCO F8006 INS PP TWIN FERRULE 2X16, 2X1.50 M
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Material:
Copper
Number of Conductors:
2
Sub Brand:
Sta-Kon®
Type:
Polypropylene Insulated Twin Ferrule
Wire Size:
16 AWG
SoneparProductId:
SKU_US_25988234

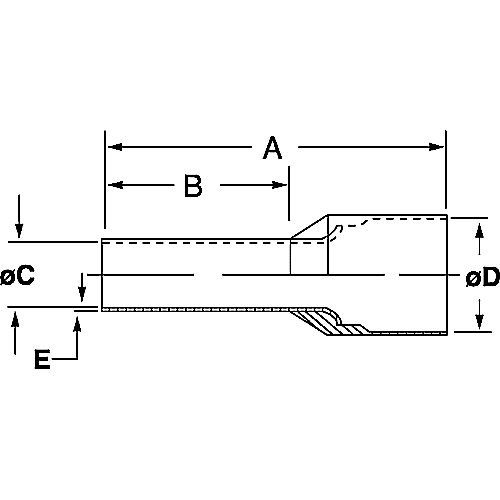

Polypropylene Insulated Twin Ferrule, Length .630 Inches/16mm, Pin Length .315 Inches/8mm, Pin Diameter .091 Inches/2.3mm, Base Diameter .252 Inches/6.4mm, Conductor Range 2x16 AWG/2x1.50mm2, Color Black, Copper, Tin Plated Features: Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks. - Notes: Ferrule dimensions conform to DIN 46228, Part 4.
