Thomas & Betts Co - Thomas & Betts G2-12 12 Inch 600 Volt Non-Insulated Standard Ring
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210871950
Applications - For Military Applications
Catalog Number - G2-12
Color - Metallic
Conductor Size - 2 AWG
Packaging
1 ea
EAN
05414363151630
Part #
189799
Catalog #
G2-12
Commercial reference
G2-12
12-Digit UPC:
786210871950
Applications:
For Military Applications
Catalog Number:
G2-12
Color:
Metallic
Conductor Size:
2 AWG
ERP_productname:
TBCO G2-12 NON-INS- TUB RING TERM, 2, 1/2, METALLI
Family Brand Name:
Thomas & Betts (T&B)
Finish:
Electro Tin Plated
Heights:
2.9 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Non-Insulated, Large, Tubular
Voltage:
600 Volt
Widths:
1.1 in
Wire Size:
2 AWG
SoneparProductId:
SKU_US_29916321

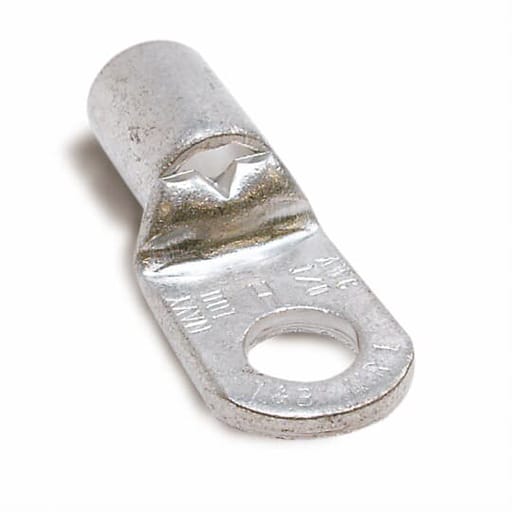

Non-Insulated Tubular Ring Terminal, Length 1.79 Inches, Width .80 Inches, Bolt Hole 1/2 Inch, Wire Range 2/2AN, Copper, Tin Plated Certifications: CSA; UL - Notes: Not available on Mylar Tape. - Features: These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
