Thomas & Betts Co - Thomas & Betts NW18-10 #10 Bolt Hole 20-18 AWG Wire Range Non-Insulated High Temperature Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210769752
Catalog Number - NW18-10
Color - Metallic
Conductor Size - 20-18 AWG
ERP_productname - TBCO NW18-10 NON-INS HTM RING TERM, 20-18, #10, METAL
Packaging
1 ea
EAN
05414363156109
Part #
159730
Catalog #
NW18-10
Commercial reference
NW18-10
12-Digit UPC:
786210769752
Catalog Number:
NW18-10
Color:
Metallic
Conductor Size:
20-18 AWG
ERP_productname:
TBCO NW18-10 NON-INS HTM RING TERM, 20-18, #10, METAL
Family Brand Name:
Thomas & Betts (T&B)
Material:
Nickel
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Wire Size:
20-18 AWG
SoneparProductId:
SKU_US_28923952

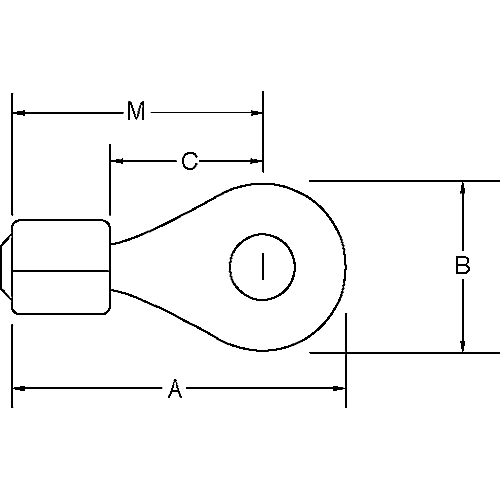

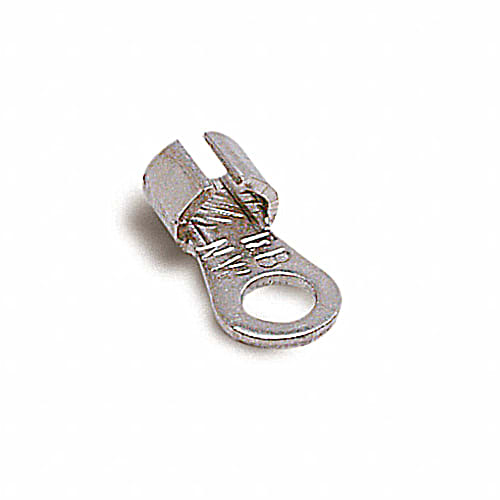

Non-Insulated High-Temperature Ring Terminal, Length .63 Inches, Width .31 Inches, Bolt Hole #10, Wire Range #20-#18 AWG, 1200 Degree Fahrenheit Maximum, Nickel Alloy, Plain Finish Features: For easily installed, permanent terminations of solid, round, or stranded nichrome wires as used in toasters, heaters, etc. - Notes: Not available on Mylar Tape.
