Thomas & Betts Co - Thomas & Betts RA1223 #8 Bolt Hole 22-16 AWG Wire Range Red Insulated Nylon Fork Terminal Flange
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210817750
Catalog Number - RA1223
Color - Red
Conductor Size - 22-16 AWG
ERP_productname - CARB RA1223 INS NYL FORK TERM FLG 22-16 NO8 RED
Packaging
1 ea
EAN
05414363157458
Part #
262382
Catalog #
RA1223
Commercial reference
RA1223
12-Digit UPC:
786210817750
Catalog Number:
RA1223
Color:
Red
Conductor Size:
22-16 AWG
ERP_productname:
CARB RA1223 INS NYL FORK TERM FLG 22-16 NO8 RED
Family Brand Name:
Thomas & Betts (T&B)
Finish:
Electro Tin Plated
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Flanged, Insulated
Voltage:
600 Volt
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_30045314

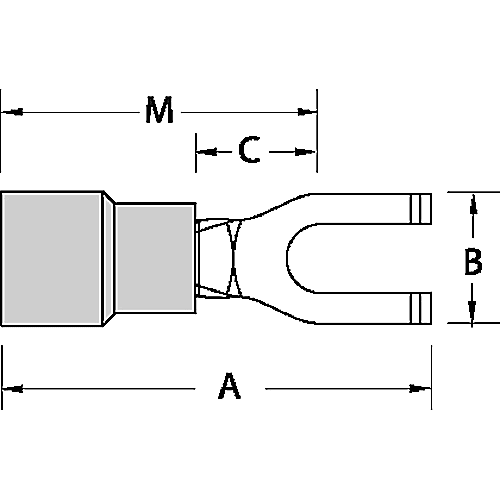

Nylon Insulated Fork Terminal with Flanged Tongue, Length .89 Inches, Width .31 Inches, Maximum Insulation .136, Bolt Hole #8, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated Features: Fork terminals allow easy installation because screw needs only to be loosened. A flanged-tongue fork with turned up tips provide fo extra holding protection. - Notes: Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
