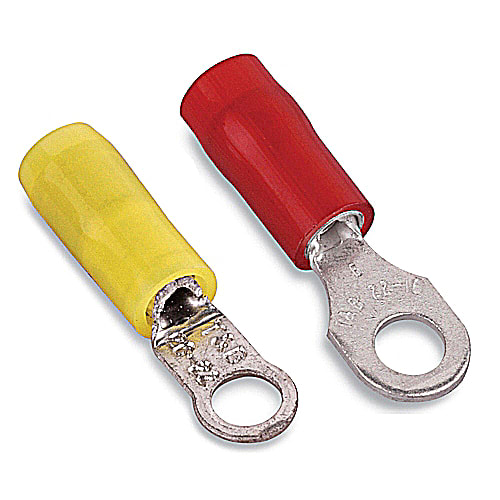

Thomas & Betts Co - Thomas & Betts RA18-10 22 to 16 AWG #10 Stud Red Electrotinned Copper Nylon Insulated Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210803913
Catalog Number - RA18-10
Color - Red
Conductor Size - 22-16 AWG
ERP_productname - TBCO RA18-10 INS NYL RING TERM, 22-16, #10, RED
Packaging
1 ea
EAN
05414363131908
Part #
115304
Catalog #
RA18-10
Commercial reference
RA18-10
12-Digit UPC:
786210803913
Catalog Number:
RA18-10
Color:
Red
Conductor Size:
22-16 AWG
ERP_productname:
TBCO RA18-10 INS NYL RING TERM, 22-16, #10, RED
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Heights:
3 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Long Sleeve
Voltage:
600 Volt
Widths:
1.1 in
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_25731680
Nylon Insulated Ring Terminal, Length .89 Inches, Width .31 Inches, Maximum Insulation .136, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Tin Plated Certifications: UL; CSA - Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
