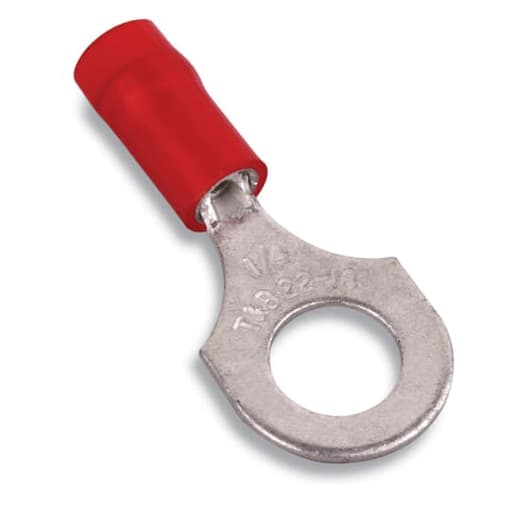

Thomas & Betts Co - Thomas & Betts RA18-516 5/16 Inch Bolt Hole 22-16 AWG Wire Range Red Insulated Nylon Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210803975
Catalog Number - RA18-516
Color - Red
Conductor Size - 22-16 AWG
ERP_productname - TBCO RA18-516 INS NYL RING TRM 22-16 BLT 5/16 RED
Packaging
100 ea
EAN
05414363157564
Part #
249707
Catalog #
RA18-516
Commercial reference
RA18-516
12-Digit UPC:
786210803975
Catalog Number:
RA18-516
Color:
Red
Conductor Size:
22-16 AWG
ERP_productname:
TBCO RA18-516 INS NYL RING TRM 22-16 BLT 5/16 RED
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Heights:
3 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
1.3 in
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_31616782

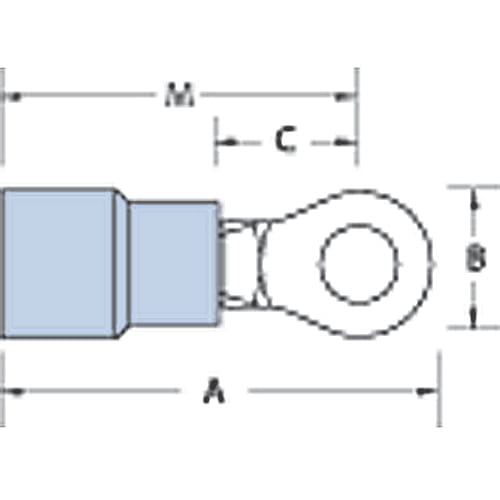

Nylon Insulated Ring Terminal, Length 1.10 Inches, Width .46 Inches, Maximum Insulation .136, Bolt Hole 5/16 Inch, Wire Range #22-#16 AWG, Color Red, Tin Plated Certifications: UL; CSA - Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
