Thomas & Betts Co - Thomas & Betts RA18-6 Nylon-Insulated Ring Terminal - #22-16, #6bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210803852
Catalog Number - RA18-6
Color - Red
Conductor Size - 22-16 AWG
ERP_productname - TBCO RA18-6 INS NYL RING TERM, 22-16, #6, RED
Packaging
1 ea
EAN
05414363131915
Part #
205413
Catalog #
RA18-6
Commercial reference
RA18-6
12-Digit UPC:
786210803852
Catalog Number:
RA18-6
Color:
Red
Conductor Size:
22-16 AWG
ERP_productname:
TBCO RA18-6 INS NYL RING TERM, 22-16, #6, RED
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Long Sleeve
Voltage:
600 Volt
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_25692809

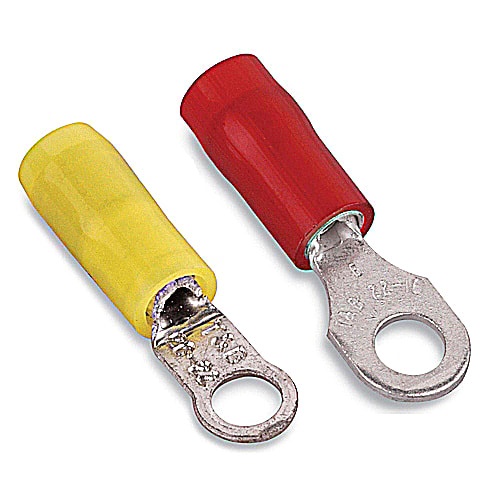

Nylon Insulated Ring Terminal, Length .86 Inches, Width .26 Inches, Maximum Insulation .136, Bolt Hole #6, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated Certifications: CSA; UL - Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
