Thomas & Betts Co - Thomas & Betts RA18-8F Nylon-Insulated Fork Terminal - #22-16, #8bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210803890
Catalog Number - RA18-8F
Color - Red
Conductor Size - 22-16 AWG
ERP_productname - TBCO RA18-8F
Packaging
1 ea
EAN
05414363157595
Part #
343012
Catalog #
RA18-8F
Commercial reference
RA18-8F
12-Digit UPC:
786210803890
Catalog Number:
RA18-8F
Color:
Red
Conductor Size:
22-16 AWG
ERP_productname:
TBCO RA18-8F
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Heights:
3 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
1.1 in
Wire Size:
22-16 AWG

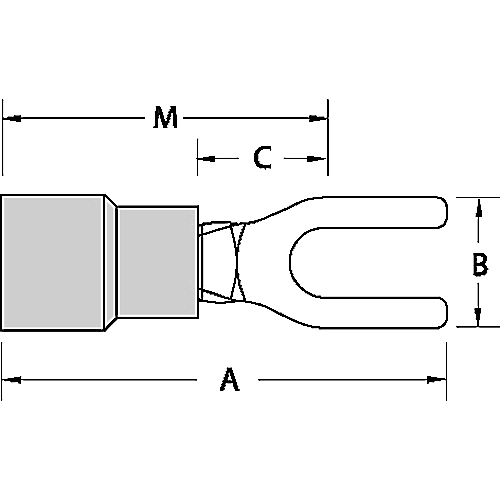

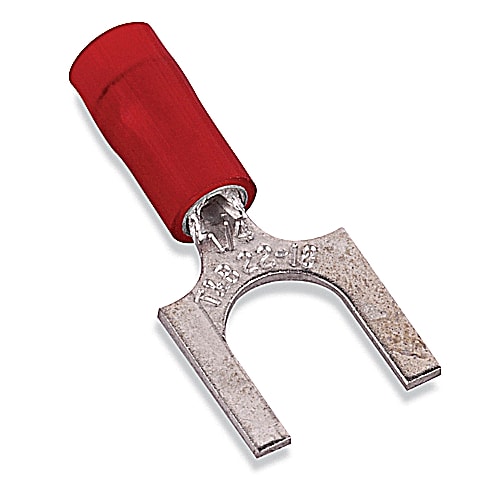

Nylon Insulated Fork Terminal, Length .83 Inches, Width .25 Inches, Maximum Insulation .136, Bolt Hole #8, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated, 100 Pack Features: Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded. - Certifications: UL; CSA
