Thomas & Betts Co - Thomas & Betts RA2257 Vinyl-Insulated Locking Fork Terminal - #22-16, #10bolt (1000/Box)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210817927
Catalog Number - RA2257
Color - Red
Conductor Size - 22-16 AWG
ERP_productname - TBCO RA2257 INS VINYL LKG FORK TERM, 22-16, #10, RED
Packaging
1 ea
EAN
00786210817927
Part #
159747
Catalog #
RA2257
Commercial reference
RA2257
12-Digit UPC:
786210817927
Catalog Number:
RA2257
Color:
Red
Conductor Size:
22-16 AWG
ERP_productname:
TBCO RA2257 INS VINYL LKG FORK TERM, 22-16, #10, RED
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Locking, Short Sleeve
Voltage:
600 Volt
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_25594565

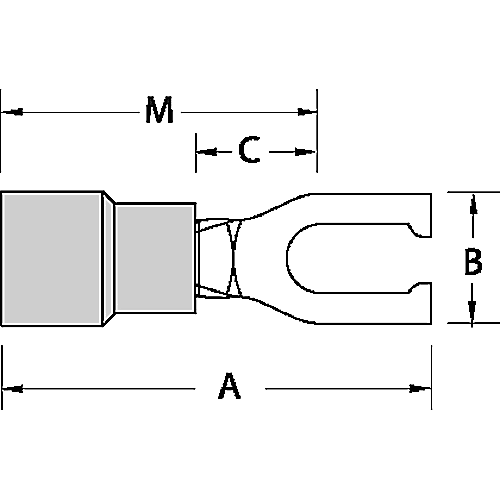

Vinyl-Insulated Locking Fork Terminal, Length .97 Inches, Width .29 Inches, Maximum Insulation .150, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated, 1,000 Piece Features: Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring. - Notes: Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
