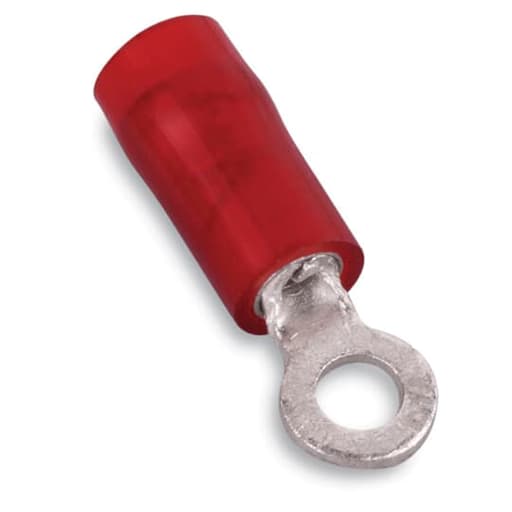

Thomas & Betts Co - Thomas & Betts RA713 Nylon-Insulated Ring Terminal - #22-16, 1/4"bolt (1000/Box)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210817187
Catalog Number - RA713
Color - Red
Conductor Size - 22-16 AWG
ERP_productname - TBCO RA713 INS NYL RING TERM, 22-16, 1/4, RED
Packaging
1 ea
EAN
05414363157809
Part #
159768
Catalog #
RA713
Commercial reference
RA713
12-Digit UPC:
786210817187
Catalog Number:
RA713
Color:
Red
Conductor Size:
22-16 AWG
ERP_productname:
TBCO RA713 INS NYL RING TERM, 22-16, 1/4, RED
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Nylon Insulated Ring Terminal
Voltage:
600 Volt
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_28943912
Nylon Insulated Ring Terminal, Length 1.10 Inches, Width .46 Inches, Maximum Insulation .136, Bolt Hole 1/4 Inch, Wire Range #22-#16 AWG, Color Red, Tin Plated, 1,000 Pack Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. - Notes: Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
