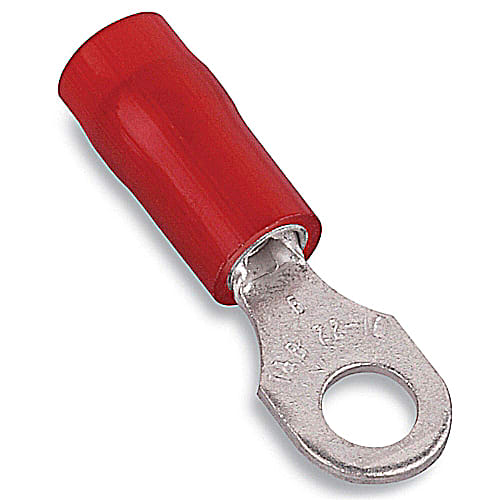

Thomas & Betts Co - Thomas & Betts RA853 Nylon-Insulated Ring Terminal - #22-16, #6bolt (1000/Box)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210817354
Catalog Number - RA853
Color - Red
Conductor Size - 22-16 AWG
ERP_productname - ABB RA853 INSNYL RING TERM 22-16 BOLT NO6 RED
Packaging
1 ea
EAN
05414363157908
Part #
321563
Catalog #
RA853
Commercial reference
RA853
12-Digit UPC:
786210817354
Catalog Number:
RA853
Color:
Red
Conductor Size:
22-16 AWG
ERP_productname:
ABB RA853 INSNYL RING TERM 22-16 BOLT NO6 RED
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_29973932
Nylon Insulated Ring Terminal, Length .86 Inch, Width .26 Inch, Maximum Insulation .136, Bolt Hole #6, Wire Range #22-16 AWG, Color Red, Copper, Tin Plated Features: Self-insulated with high dieletric-strength nylon sleeves.; An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.; Application Tools: WT2000, WT112M, WT145C, ERG4001, WT145A; Alternate Package Qty: RA18-6
