Thomas & Betts Co - Thomas & Betts RA857 22-16 AWG Wire Range #6 Bolt Hole Red Insulated Vinyl Ring Terminal

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 786210817408

  • Catalog Number - RA857

  • Color - Red

  • Conductor Size - 22-16 AWG

  • ERP_productname - TBCO RA857 INS VINYL RING TERM, 22-16, #6, RED

Packaging

  • 1 ea

EAN

05414363135142

Part #

159773

Catalog #

RA857

Commercial reference

RA857

12-Digit UPC:

786210817408

Catalog Number:

RA857

Color:

Red

Conductor Size:

22-16 AWG

ERP_productname:

TBCO RA857 INS VINYL RING TERM, 22-16, #6, RED

Family Brand Name:

ABB

Finish:

Electro Tin Plated

Material:

Copper

Sub Brand:

Sta-Kon®

Type:

Short Sleeve

Voltage:

600 Volt

Wire Size:

22-16 AWG

SoneparProductId:

SKU_US_27189219

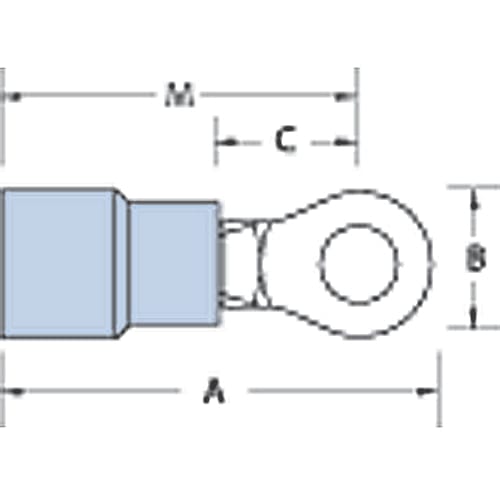

Vinyl-Insulated Ring Terminal, Length .94 Inches, Width .25 Inches, Maximum Insulation .150, Bolt Hole #6, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, 1,000 Pack Features: These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value. - Notes: Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
