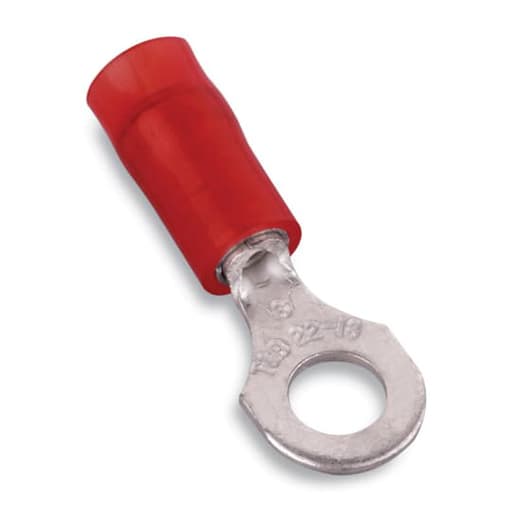

Thomas & Betts Co - Thomas & Betts RA863 Nylon-Insulated Ring Terminal - #22-16, #8bolt (1000/Box)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210817439
Catalog Number - RA863
Color - Red
Conductor Size - 22-16 AWG
ERP_productname - TBCO RA863 INSNYL RING TERM 22-16 BOLT NO8 RED
Packaging
1000 ea
EAN
05414363157946
Part #
249706
Catalog #
RA863
Commercial reference
RA863
12-Digit UPC:
786210817439
Catalog Number:
RA863
Color:
Red
Conductor Size:
22-16 AWG
ERP_productname:
TBCO RA863 INSNYL RING TERM 22-16 BOLT NO8 RED
Family Brand Name:
Thomas & Betts (T&B)
Finish:
Electro Tin Plated
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Insulated, Short Sleeve
Voltage:
600 Volt
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_28944717

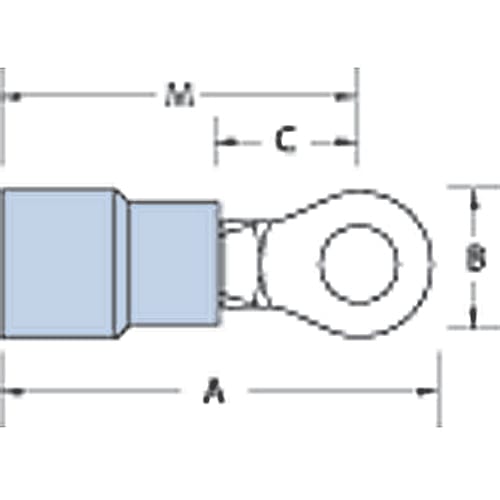

Nylon Insulated Ring Terminal, Length .89 Inch, Width .31 Inch, Maximum Insulation .136 Inch, Bolt Hole #8, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated, 1,000 Pack Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. - Notes: Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
