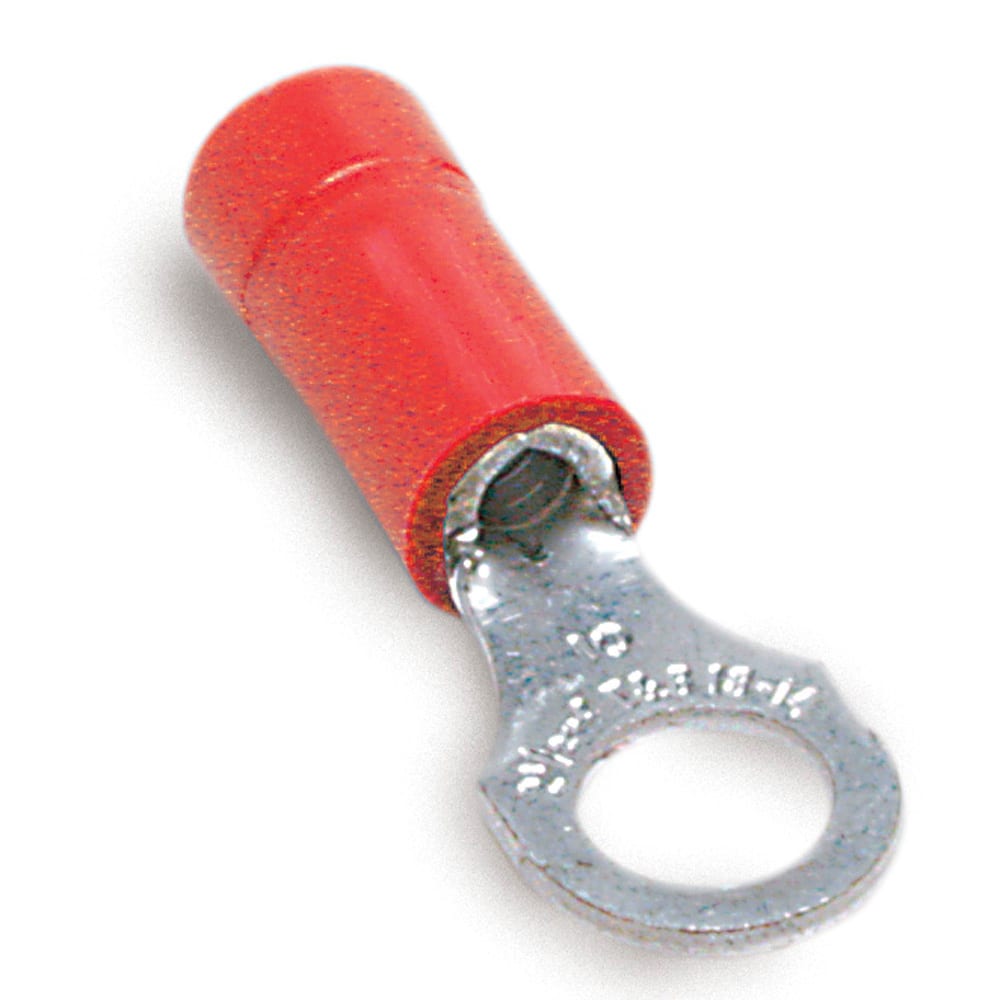

Thomas & Betts Co - Thomas & Betts RA877 22-16 AWG Wire Range #10 Bolt Hole Red Insulated Vinyl Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210817514
Catalog Number - RA877
Color - Red
Conductor Size - 22-16 AWG
ERP_productname - TBCO RA877 INS VINYL RING TERM, 22-16, #10, RED
Packaging
1 ea
EAN
05414363157991
Part #
148213
Catalog #
RA877
Commercial reference
RA877
12-Digit UPC:
786210817514
Catalog Number:
RA877
Color:
Red
Conductor Size:
22-16 AWG
ERP_productname:
TBCO RA877 INS VINYL RING TERM, 22-16, #10, RED
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Wire Size:
22-16 AWG
SoneparProductId:
SKU_US_25988842
Vinyl-Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .150, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated, 1,000 Pack Features: These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value. - Notes: Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
