Thomas & Betts Co - Thomas & Betts RB14-10 Nylon-Insulated Ring Terminal - #18-14, #10bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210804125
Catalog Number - RB14-10
Color - Blue
Conductor Size - 18-14 AWG
ERP_productname - TBCO RB1410 16-14 INS RING TERM
Packaging
1 ea
EAN
05414363158288
Part #
209160
Catalog #
RB1410
Commercial reference
RB1410
12-Digit UPC:
786210804125
Catalog Number:
RB14-10
Color:
Blue
Conductor Size:
18-14 AWG
ERP_productname:
TBCO RB1410 16-14 INS RING TERM
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Heights:
3.1 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
2.3 in
Wire Size:
18-14 AWG
SoneparProductId:
SKU_US_25731966

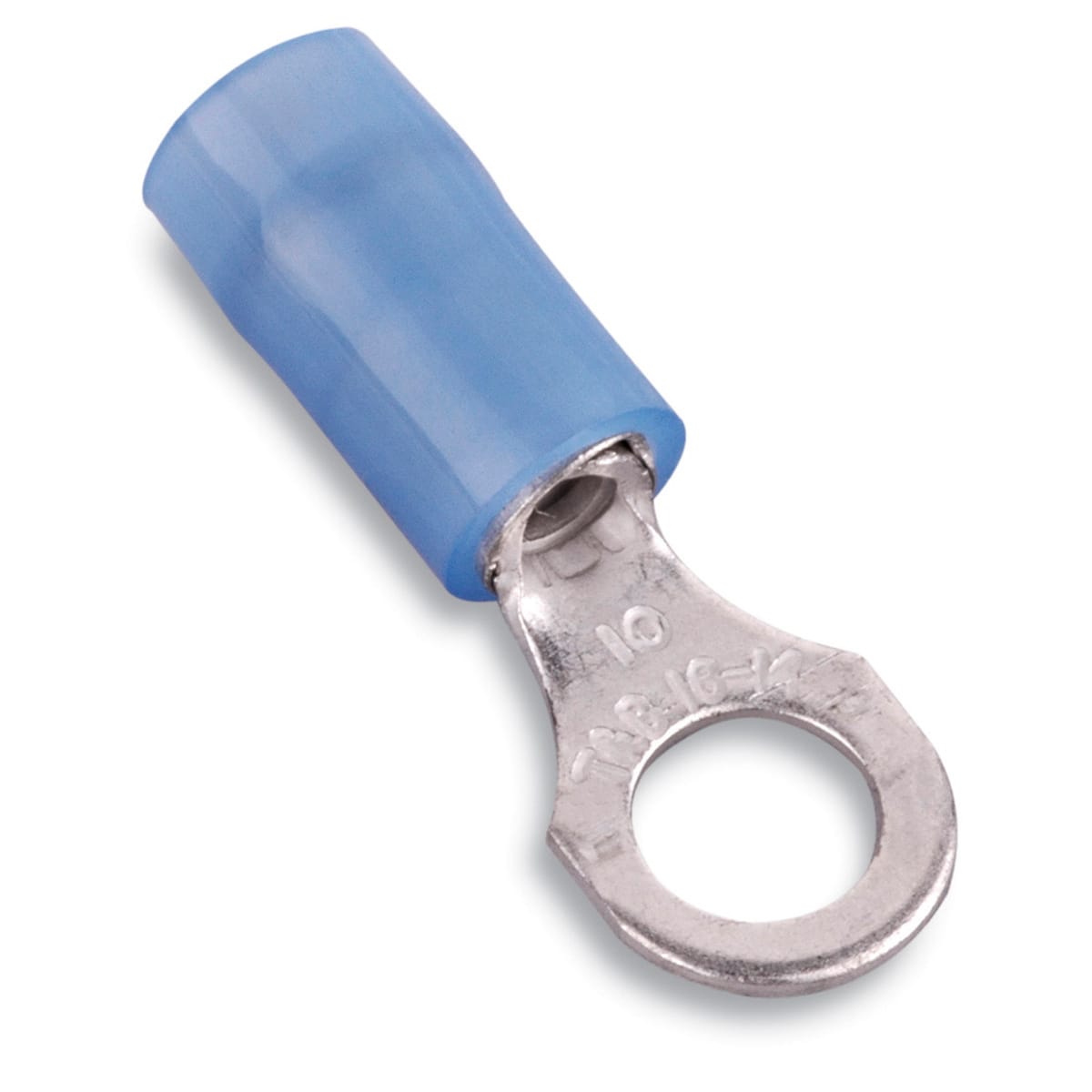

Nylon Insulated Ring Terminal, Length .89 Inches, Width .31 Inches, Maximum Insulation .162, Bolt Hole #10, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated Certifications: CSA; UL - Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
