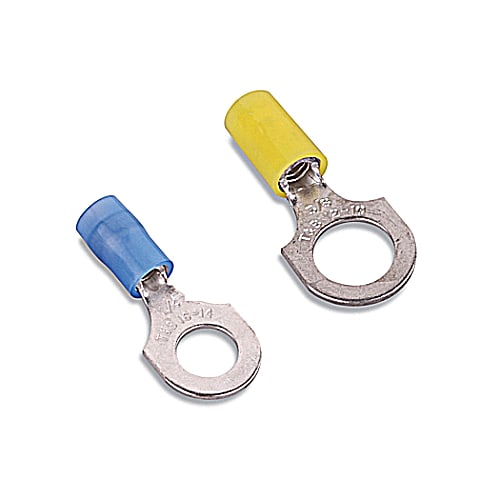

Thomas & Betts Co - Thomas & Betts RB14-38 3/8 Inch Bolt Hole 18-14 AWG Wire Range Blue Insulated Nylon Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210804217
Catalog Number - RB14-38
Color - Blue
Conductor Size - 18-14 AWG
ERP_productname - ABB RB14-38 INS NYL RING TERM 18-14 3/8IN BLUE
Packaging
1 ea
EAN
05414363158387
Part #
337357
Catalog #
RB14-38
Commercial reference
RB14-38
12-Digit UPC:
786210804217
Catalog Number:
RB14-38
Color:
Blue
Conductor Size:
18-14 AWG
ERP_productname:
ABB RB14-38 INS NYL RING TERM 18-14 3/8IN BLUE
Family Brand Name:
ABB
Finish:
Tin Plated
Heights:
3 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
1.3 in
Wire Size:
18-14 AWG
SoneparProductId:
SKU_US_29829535
Nylon Insulated Ring Terminal, Length 1.17 Inches, Width .53 Inches, Maximum Insulation .162, Bolt Hole 3/8 Inch, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated Certifications: CSA; UL - Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
