Thomas & Betts Co - Thomas & Betts RB14-6F Nylon-Insulated Fork Terminal - #18-14, #6bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210804033
Catalog Number - RB14-6F
Color - Blue
Conductor Size - 18-14 AWG
ERP_productname - TBCO RB14-6F INS NYL FORK TERM, 18-14, #6, BLUE
Packaging
1 ea
EAN
05414363158424
Part #
196729
Catalog #
RB14-6F
Commercial reference
RB14-6F
12-Digit UPC:
786210804033
Catalog Number:
RB14-6F
Color:
Blue
Conductor Size:
18-14 AWG
ERP_productname:
TBCO RB14-6F INS NYL FORK TERM, 18-14, #6, BLUE
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Heights:
3 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
1.1 in
Wire Size:
18-14 AWG
SoneparProductId:
SKU_US_25712898

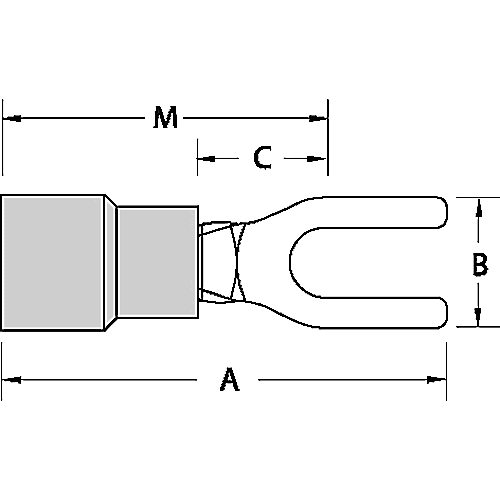

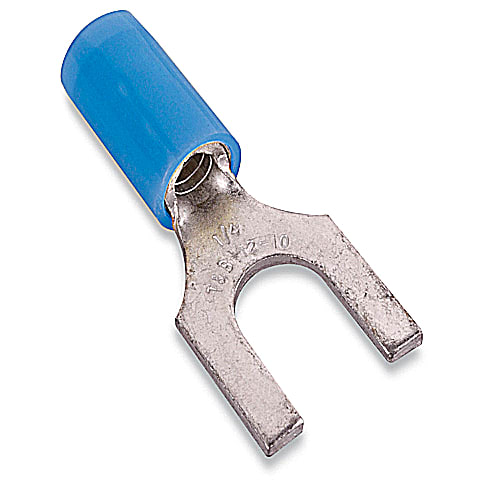

Nylon Insulated Fork Terminal, Length .87 Inches, Width .31 Inches, Maximum Insulation .162, Bolt Hole #6, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, 100 Pack Features: Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded. - Certifications: CSA; UL
