Thomas & Betts Co - Thomas & Betts RB713 Nylon-Insulated Ring Terminal - #18-14, 1/4"bolt (1000/Box)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210818368
Catalog Number - RB713
Color - Blue
Conductor Size - 18-14 AWG
ERP_productname - TBCO RB713 INS NYL RING TERM, 18-14, 1/4, BLUE
Packaging
1000 ea
EAN
05414363158677
Part #
159835
Catalog #
RB713
Commercial reference
RB713
12-Digit UPC:
786210818368
Catalog Number:
RB713
Color:
Blue
Conductor Size:
18-14 AWG
ERP_productname:
TBCO RB713 INS NYL RING TERM, 18-14, 1/4, BLUE
Family Brand Name:
ABB
Finish:
Tin Plated
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Wire Size:
18-14 AWG
SoneparProductId:
SKU_US_29935019

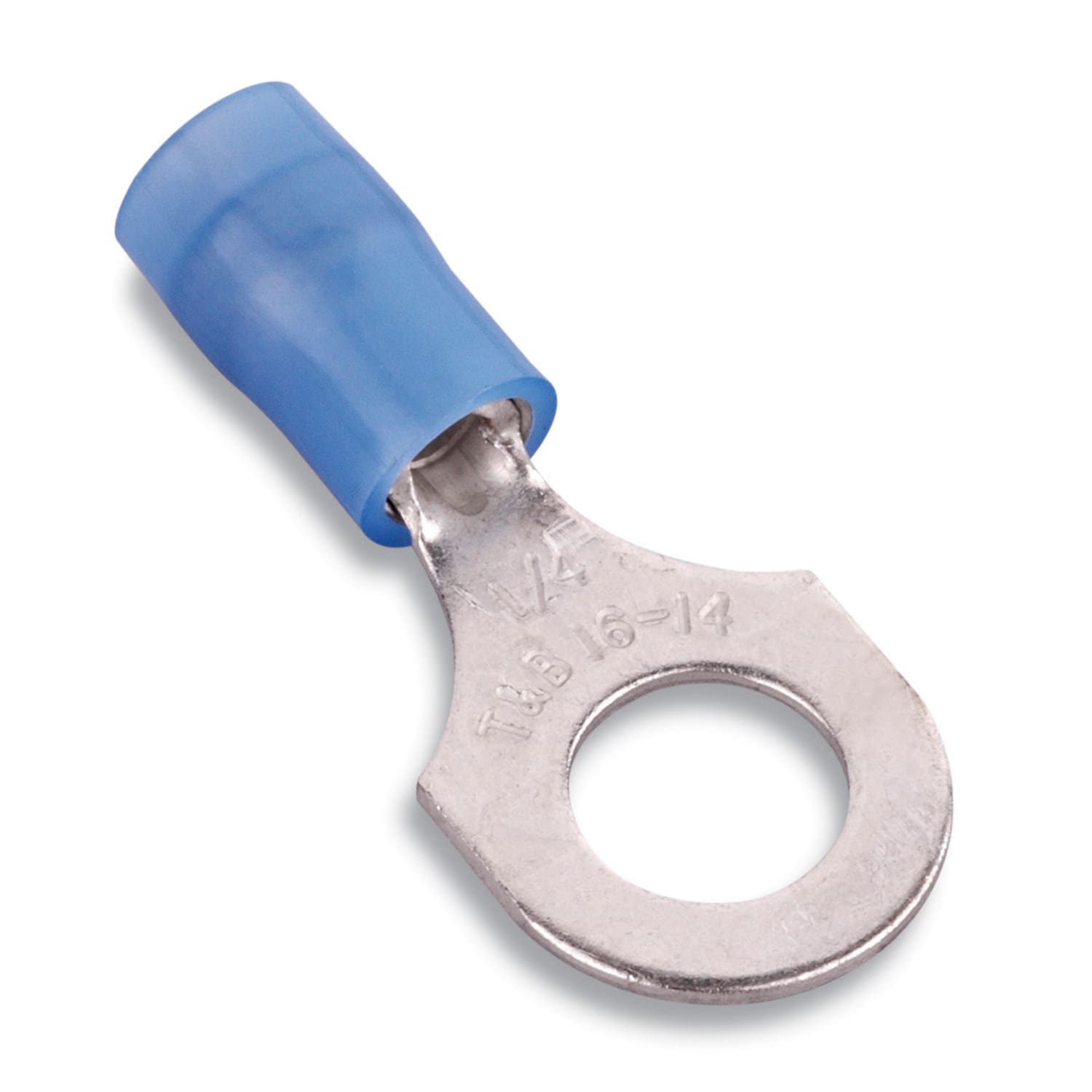

Nylon Insulated Ring Terminal, Length 1.08 Inches, Width .47 Inches, Maximum Insulation .162, Bolt Hole 1/4 Inch, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. - Notes: Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
