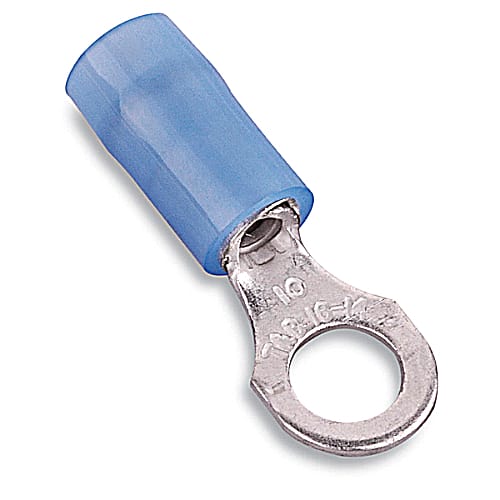

Thomas & Betts Co - Thomas & Betts RB873 Nylon-Insulated Ring Terminal - #18-14, #10bolt (1000/Box)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210818795
Catalog Number - RB873
Color - Blue
Conductor Size - 18-14 AWG
ERP_productname - TBCO RB873 16-14 RING TERM BULK
Packaging
1 ea
EAN
05414363158820
Part #
209216
Catalog #
RB873
Commercial reference
RB873
12-Digit UPC:
786210818795
Catalog Number:
RB873
Color:
Blue
Conductor Size:
18-14 AWG
ERP_productname:
TBCO RB873 16-14 RING TERM BULK
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Wire Size:
18-14 AWG
SoneparProductId:
SKU_US_28942248
Nylon Insulated Ring Terminal, Length .89 Inches, Width .31 Inches, Maximum Insulation .162, Bolt Hole #10, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. - Notes: Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
