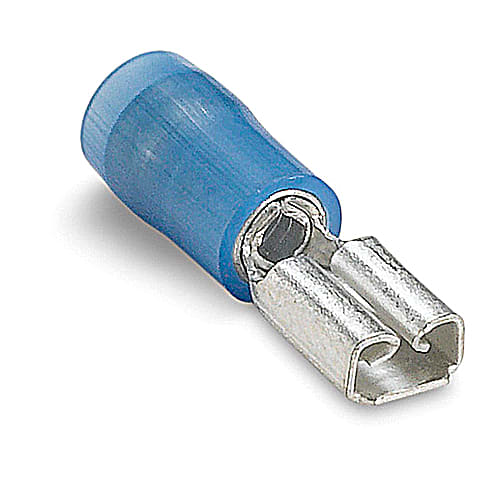

Thomas & Betts Co - Thomas & Betts RBD14-183 .83 Inch Length 16-14 AWG Wire Range .187 Inch Tab Size Insulated Nylon Female Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210816524
Catalog Number - RBD14-183
Color - Blue
Conductor Size - 16-14 AWG
ERP_productname - TBCO RBD14-183 INS NYL FEM-187 DISC, 16-14 LEN .83, TAB
Packaging
1 ea
EAN
05414363933632
Part #
107750
Catalog #
RBD14-183
Commercial reference
RBD14-183
12-Digit UPC:
786210816524
Catalog Number:
RBD14-183
Color:
Blue
Conductor Size:
16-14 AWG
ERP_productname:
TBCO RBD14-183 INS NYL FEM-187 DISC, 16-14 LEN .83, TAB
Family Brand Name:
ABB
Finish:
Electro-Tin Plated
Length:
0.83 Inch
Material:
Brass
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
SoneparProductId:
SKU_US_30363993
Nylon Insulated Female Disconnect, Length .83 Inches, Width .23 Inches, Maximum Insulation .163, Tab Size .187x.032, Wire Range #16-#14 AWG, Color Blue, Brass, Tin Plated Certifications: CSA; UL - Features: Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability.
