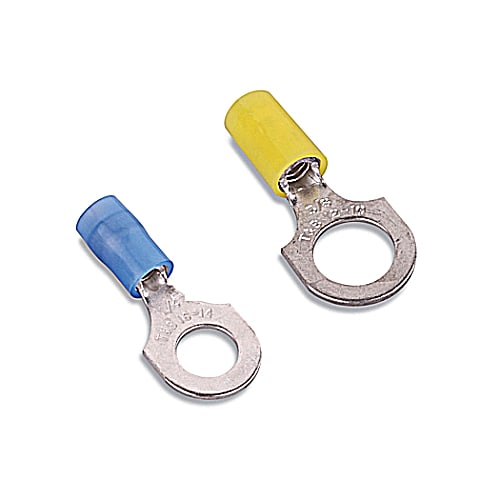

Thomas & Betts Co - Thomas & Betts RC10-10 Nylon-Insulated Ring Terminal - #12-10, #10bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210804385
Catalog Number - RC10-10
Color - Yellow
Conductor Size - 12-10 AWG
ERP_productname - TBCO RC1010 12-10 INS RING TERM
Packaging
1 ea
EAN
05414363135173
Part #
209225
Catalog #
RC1010
Commercial reference
RC1010
12-Digit UPC:
786210804385
Catalog Number:
RC10-10
Color:
Yellow
Conductor Size:
12-10 AWG
ERP_productname:
TBCO RC1010 12-10 INS RING TERM
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Heights:
3.3 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
4.69 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_25731738
Nylon Insulated Ring Terminal, Length 1.00 Inches, Width .37 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. - Certifications: UL; CSA
