Essential specifications
12-Digit UPC - 786210804392
Catalog Number - RC10-10F
Color - Yellow
Conductor Size - 12-10 AWG
ERP_productname - TBCO RC1010F 12-10 INS SPADE TERM
Packaging
1 ea
EAN
05414363159032
Part #
209231
Catalog #
RC1010F
Commercial reference
RC1010F
12-Digit UPC:
786210804392
Catalog Number:
RC10-10F
Color:
Yellow
Conductor Size:
12-10 AWG
ERP_productname:
TBCO RC1010F 12-10 INS SPADE TERM
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Heights:
3 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
1.1 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_25731854

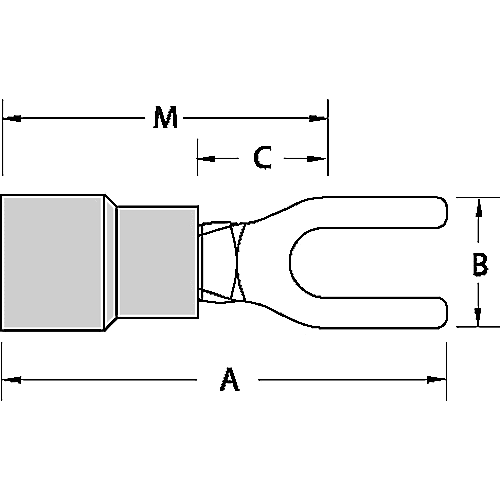

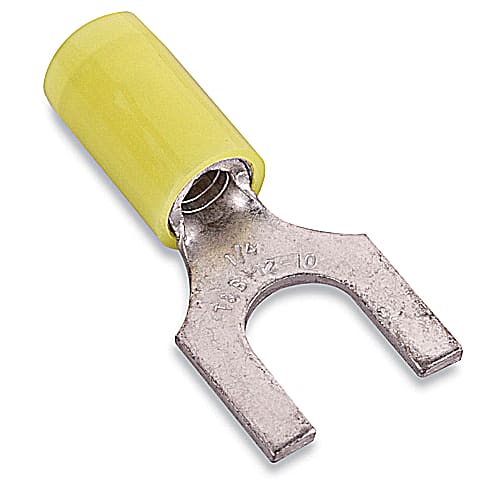

Nylon Insulated Fork Terminal, Length 1.00 Inches, Width .37 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated Certifications: CSA; UL - Features: Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
