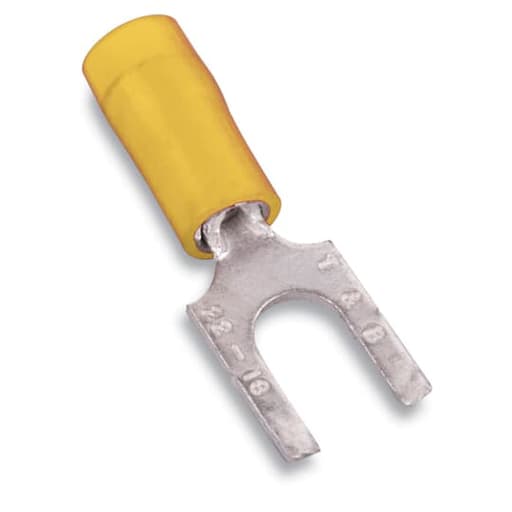

Thomas & Betts Co - Thomas & Betts RC10-10FS 12 to 10 AWG #10 Stud Yellow Electrotinned Copper Nylon Insulated Fork Terminal Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210804408
Catalog Number - RC10-10FS
Color - Yellow
Conductor Size - 12-10 AWG
ERP_productname - TBCO RC10-10FS INS NYL FORK TERM, FLG 12-10, #10,
Packaging
1 ea
EAN
05414363159056
Part #
200342
Catalog #
RC10-10FS
Commercial reference
RC10-10FS
12-Digit UPC:
786210804408
Catalog Number:
RC10-10FS
Color:
Yellow
Conductor Size:
12-10 AWG
ERP_productname:
TBCO RC10-10FS INS NYL FORK TERM, FLG 12-10, #10,
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Heights:
3 Inch
Material:
Copper
Type:
Short Sleeve, Flanged Tongue
Voltage:
600 Volt
Widths:
1.3 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_28945234

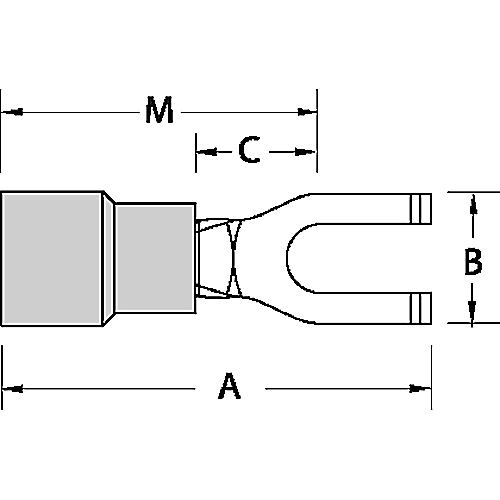

Nylon Insulated Fork Terminal with Flanged Tongue, Length 1.00 Inches, Width .38 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated Certifications: CSA; UL - Features: Fork terminals allow easy installation because screw needs only to be loosened. A flanged-tongue fork with turned up tips provide fo extra holding protection.
