Thomas & Betts Co - Thomas & Betts RC10-12X 1/2 Inch 12-10 AWG Expanded Insulated Nylon Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210878553
Catalog Number - RC10-12X
Color - Yellow
Conductor Size - 12-10 AWG
ERP_productname - ABB RC10-12X EXP INS NYL RING TERM, 12-10, 1/2,
Packaging
1 ea
EAN
05415022254587
Part #
337457
Catalog #
RC10-12X
Commercial reference
RC10-12X
12-Digit UPC:
786210878553
Catalog Number:
RC10-12X
Color:
Yellow
Conductor Size:
12-10 AWG
ERP_productname:
ABB RC10-12X EXP INS NYL RING TERM, 12-10, 1/2,
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Heights:
3 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
1.3 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_31708885

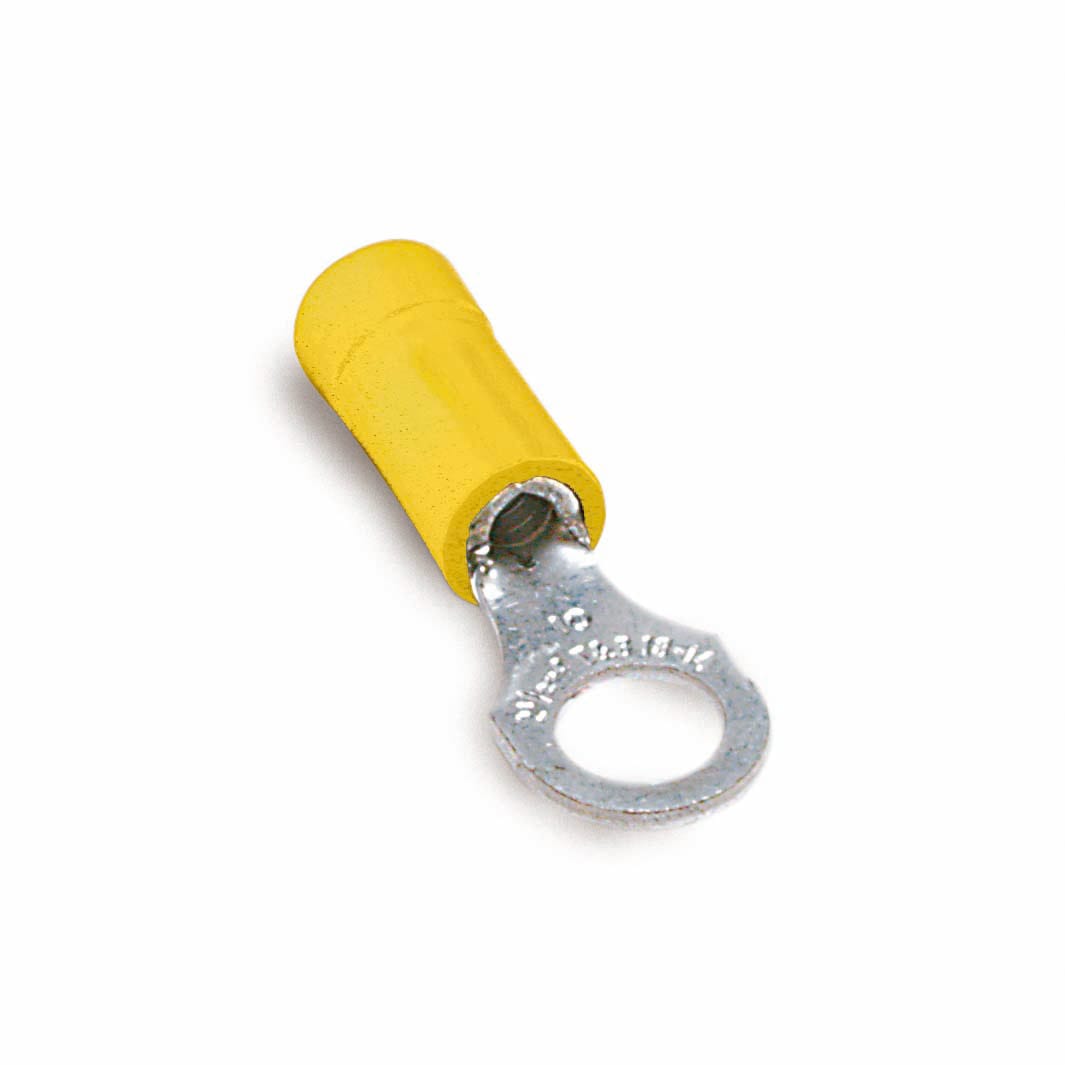

Nylon Insulated Expanded Entry Ring Terminal, Length 1.48 Inches, Width .72 Inches, Maximum Insulation .250, Bolt Hole 1/2 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated Certifications: CSA; UL - Features: Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
