Thomas & Betts Co - Thomas & Betts RC10-14 Nylon-Insulated Ring Terminal - #12-10, 1/4"bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210804422
Catalog Number - RC10-14
Color - Yellow
Conductor Size - 12-10 AWG
ERP_productname - TBCO RC1014 TERM
Packaging
1 ea
EAN
05414363159087
Part #
209242
Catalog #
RC1014
Commercial reference
RC1014
12-Digit UPC:
786210804422
Catalog Number:
RC10-14
Color:
Yellow
Conductor Size:
12-10 AWG
ERP_productname:
TBCO RC1014 TERM
Family Brand Name:
ABB
Finish:
Tin Plated
Heights:
3 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Long Sleeve
Voltage:
600 Volt
Widths:
1.3 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_25370409

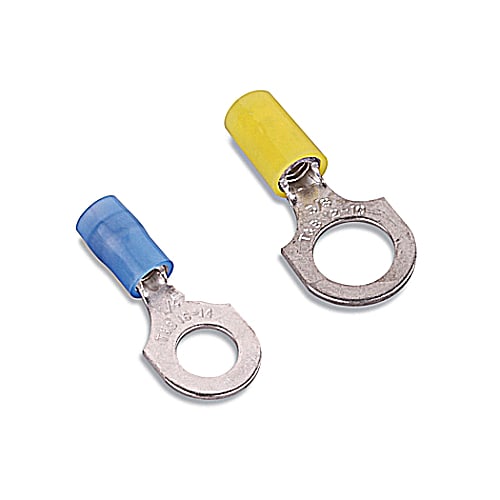

Nylon Insulated Ring Terminal, Length 1.12 Inches, Width .53 Inches, Maximum Insulation .210, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated Certifications: CSA; UL - Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
