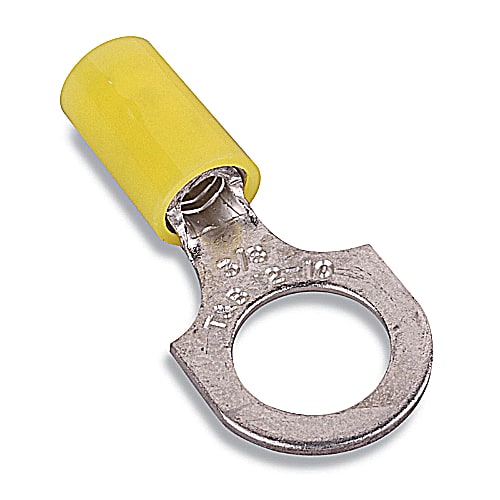

Thomas & Betts Co - Thomas & Betts RC10-38 12 to 10 AWG 3/8 Inch Stud Yellow Electrotinned Copper Nylon Insulated Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210804453
Catalog Number - RC10-38
Color - Yellow
Conductor Size - 12-10 AWG
ERP_productname - TBCO RC1038 12-10 INJS RING TERM
Packaging
1 ea
EAN
05414363159124
Part #
209255
Catalog #
RC1038
Commercial reference
RC1038
12-Digit UPC:
786210804453
Catalog Number:
RC10-38
Color:
Yellow
Conductor Size:
12-10 AWG
ERP_productname:
TBCO RC1038 12-10 INJS RING TERM
Family Brand Name:
ABB
Finish:
Tin Plated
Heights:
3 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
1.3 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_25683770
Nylon Insulated Ring Terminal, Length 1.27 Inches, Width .59 Inches, Maximum Insulation .210, Bolt Hole 3/8 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. - Certifications: CSA; UL
