Thomas & Betts Co - Thomas & Betts RC363 Nylon-Insulated Ring Terminal - #12-10, #10bolt (500/Box)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210819822
Catalog Number - RC363
Color - Yellow
Conductor Size - 12-10 AWG
ERP_productname - TBCO RC363 INS NYL RING TERM, 12-10, #10, YELLOW
Packaging
1 ea
EAN
05414363159322
Part #
142761
Catalog #
RC363
Commercial reference
RC363
12-Digit UPC:
786210819822
Catalog Number:
RC363
Color:
Yellow
Conductor Size:
12-10 AWG
ERP_productname:
TBCO RC363 INS NYL RING TERM, 12-10, #10, YELLOW
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_25533712

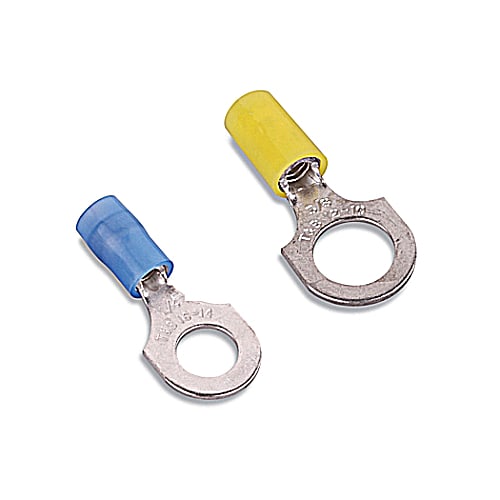

Nylon Insulated Ring Terminal, Length 1.00 Inches, Width .37 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. - Notes: Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
