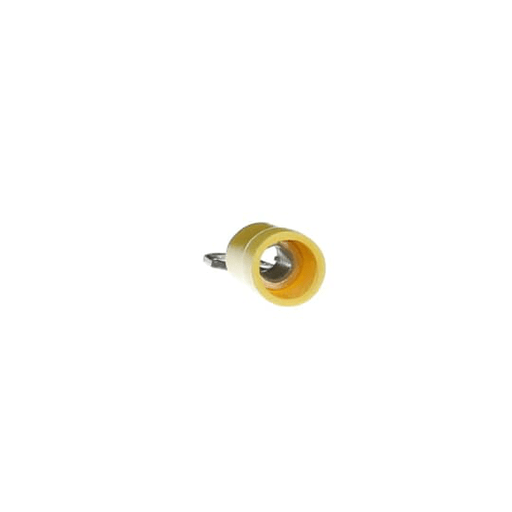

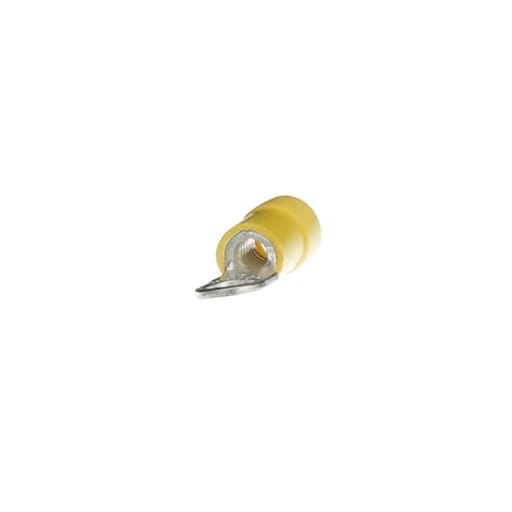

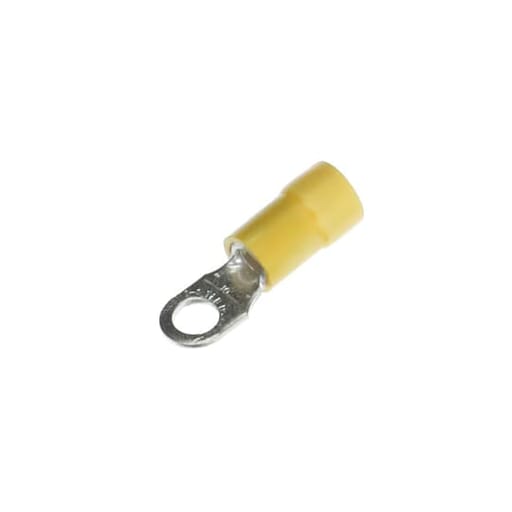

Thomas & Betts Co - Thomas & Betts RC367-250 #10 Bolt Hole 12-10 AWG Wire Range Expanded Insulated Vinyl Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210819891
Catalog Number - RC367-250
Color - Yellow
Conductor Size - 12-10 AWG
ERP_productname - TBCO RC367-250 EXP INSULVINYL RNG TRM, 12-10, NO10
Packaging
1 ea
EAN
05414363159353
Part #
130563
Catalog #
RC367-250
Commercial reference
RC367-250
12-Digit UPC:
786210819891
Catalog Number:
RC367-250
Color:
Yellow
Conductor Size:
12-10 AWG
ERP_productname:
TBCO RC367-250 EXP INSULVINYL RNG TRM, 12-10, NO10
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Heights:
4.8 Inch
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Widths:
10 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_32111927
Expanded Vinyl Insulated Ring Terminal, Length 1.06 Inches, Width .31 Inches, Maximum Insulation .250, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack Certifications: CSA; UL - Notes: Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers. - Features: Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
