Thomas & Betts Co - Thomas & Betts RZ22-6 26 to 22 AWG #6 Stud Yellow Electrotinned Copper Nylon Insulated Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786210804545
Catalog Number - RZ22-6
Color - Yellow
Conductor Size - 26-22 AWG
ERP_productname - TBCO RZ22-6 INS NYL RING TERM, 26-22, #6, YELLO
Packaging
1 ea
EAN
05414363160410
Part #
139278
Catalog #
RZ22-6
Commercial reference
RZ22-6
12-Digit UPC:
786210804545
Catalog Number:
RZ22-6
Color:
Yellow
Conductor Size:
26-22 AWG
ERP_productname:
TBCO RZ22-6 INS NYL RING TERM, 26-22, #6, YELLO
Family Brand Name:
ABB
Finish:
Electro Tin Plated
Material:
Copper
Sub Brand:
Sta-Kon®
Type:
Short Sleeve
Voltage:
600 Volt
Wire Size:
26-22 AWG
SoneparProductId:
SKU_US_25580880

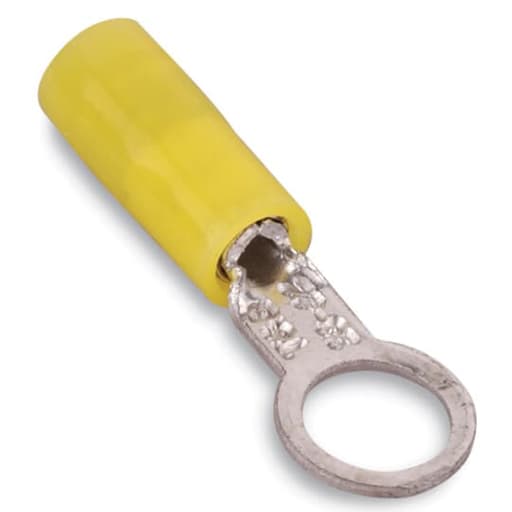

Nylon Insulated Ring Terminal, Length .65 Inches, Width .21 Inches, Maximum Insulation .083, Bolt Hole #6, Wire Range #26-#22 AWG, Color Yellow, Copper, Tin Plated Features: Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
