Thomas & Betts Co - TRANS TANK GRND CONN 1 1-9/16
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783786300457
Applications - Transformer Tank Ground Connector
Catalog Number - TTC3
Conductor Material - Copper
Conductor Size - 1 AWG Stranded, 10 AWG Solid
Packaging
1 ea
EAN
00783786300457
Part #
233928
Catalog #
TTC3
Commercial reference
TTC3
12-Digit UPC:
783786300457
Applications:
Transformer Tank Ground Connector
Catalog Number:
TTC3
Conductor Material:
Copper
Conductor Size:
1 AWG Stranded, 10 AWG Solid
ERP_productname:
CARB TTC3 TRANS TANK GRND CONN 1 1-9/16
Family Brand Name:
Thomas & Betts (T&B)
Heights:
1-3/8 Inch
Length:
1-9/16 Inch
Material:
Bronze
Size:
1-3/8 X 1-3/64 X 1-9/16 in
Tc Connection:
Mechanical
Type:
Mechanical
Widths:
1-3/64 in
SoneparProductId:
SKU_US_73877060

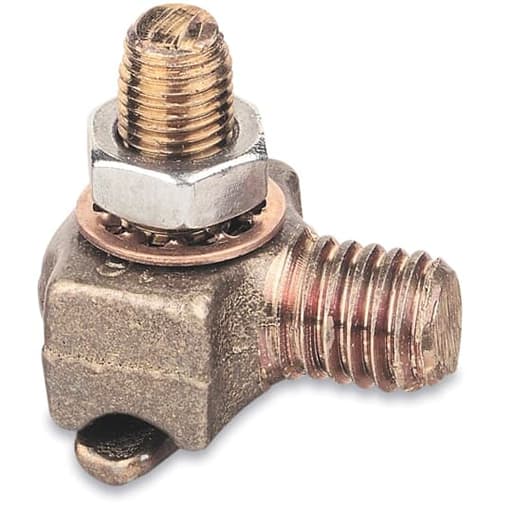

Transformer Tank Ground Connector for Wire Range 1 Stranded - 10 Solid, Stud Size 1/2-13 UNC-2A. 1-3/8 X 1-3/64 X 1-9/16 inches. Features: Fits on all standard EEI-NEMA distribution transformers.; Versatile single-stud tread size. Eyebolt rotates to accommodate cable in either vertical or horizontal direction. - Application: Grounding Connections
