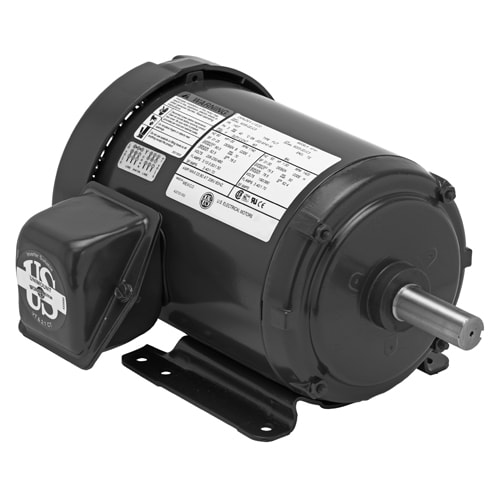

U.S. Electric Motors / Nidec - US Motors T12S3A 1/2HP, 1140RPM, 208-230/460V, 60HZ, 56 Frame
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786382070540
Amperage - 2.2-2.3/1.1 Amp
Catalog Number - T12S3A
Country of Origin - Mexico
Current - 2.2-2.3/1.1 Amp
Packaging
1 ea
EAN
Part #
175965
Catalog #
T12S3A
Commercial reference
T12S3A
12-Digit UPC:
786382070540
Amperage:
2.2-2.3/1.1 Amp
Catalog Number:
T12S3A
Country of Origin:
Mexico
Current:
2.2-2.3/1.1 Amp
ERP_productname:
USEM T12S3A 1/2 HP 1140 RPM T12S3A 208-230/460 V 60 HZ 56
Enclosure Type:
TEFC
Family Brand Name:
U.S. Electric Motors / Nidec
Frame:
56
Horsepower:
1/2 hp
Mounting Type:
RIGID
Number of Phases:
3 Phase
Number of Poles:
6 Pole
Voltage:
208-230/460 Volt
Wattage:
0.373 kW
SoneparProductId:
SKU_US_316030518
Steel EdgeTM motors offer the widest range of electrical and mechanical features of any motor on the market today. Steel EdgeTM can be used on pumps, fans, compressors, general industrial belt drive, direct drive and direct-connected equipment where 12-lead, wye-start/delta-run is required. Steel EdgeTM is also available as an inverter duty motor, meeting both Parts 30 and 31 of NEMA MG-1 standards.
