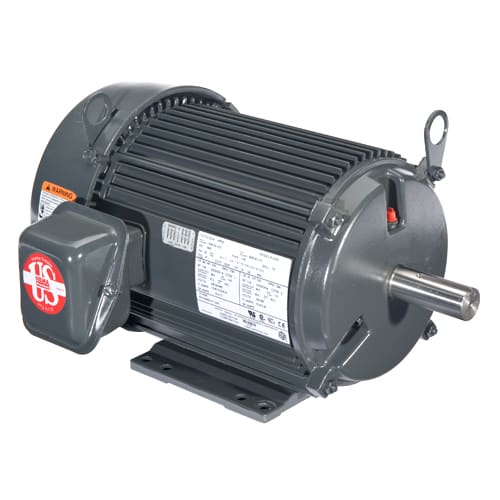

U.S. Electric Motors / Nidec - US Motors U7P1AF 7 1/2HP, 3510RPM, 208-230/460V, 60HZ, 184T Frame
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786382093792
Amperage - 19.9-17.7/8.9 Amp
Catalog Number - U7P1AF
Country of Origin - Mexico
Current - 19.9-17.7/8.9 Amp
Packaging
1 ea
EAN
Part #
109270
Catalog #
U7P1AF
Commercial reference
U7P1AF
12-Digit UPC:
786382093792
Amperage:
19.9-17.7/8.9 Amp
Catalog Number:
U7P1AF
Country of Origin:
Mexico
Current:
19.9-17.7/8.9 Amp
ERP_productname:
USEM U7P1AF 7 1/2 HP 3510 RPM U7P1AF 208-230/460 V 60 HZ 184T
Enclosure Type:
TEFC
Family Brand Name:
U.S. Electric Motors / Nidec
Frame:
184T
Horsepower:
7-1/2 hp
Mounting Type:
HORZ-FOOTED
Number of Phases:
3 Phase
Number of Poles:
2 Pole
Voltage:
208-230/460 Volt
Wattage:
5.595 kW
SoneparProductId:
SKU_US_315864308
U.S. MOTORS® UNIMOUNT motors feature an extruded aluminum frame and Class F temperature rise at 1.25 service factor, making it the coolest running motorin the industry. Removable feet, C-Face and D-flange kits, canopy cap kits, and brake kits make UNIMOUNT motors one of the most versital motors in the industry. Aluminum brackets combined with steel bearing inserts ensure UNIMOUNT motors are both light weight and reliable.
