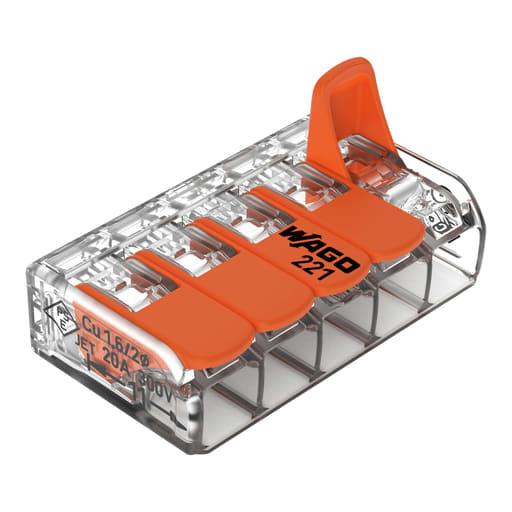

Wago - WAGO 221-415 5 PORT LEVER NUT 25PC BOX

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 508218971490

  • Actuator - Lever

  • Catalog Number - 221-415

  • Color - Transparent

  • Conductor Material - Copper

Packaging

  • 1 ea

EAN

Part #

121238

Catalog #

221-415

Commercial reference

221-415

12-Digit UPC:

508218971490

Actuator:

Lever

Catalog Number:

221-415

Color:

Transparent

Conductor Material:

Copper

Conductor Size:

12 AWG

Country of Origin:

Germany

Current:

32 Amp

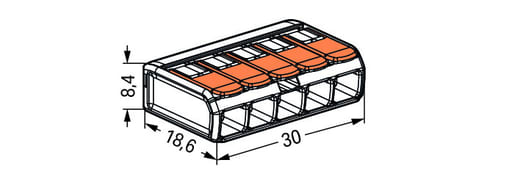

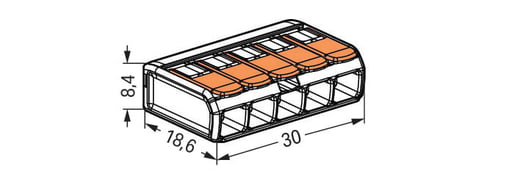

Depths:

0.732 Inch

ERP_productname:

WAGO 221-415 5 PORT LEVER NUT 25PC BOX

Family Brand Name:

Wago

Heights:

0.327 Inch

Widths:

1.181 in

SoneparProductId:

SKU_US_219887695

WAGO 221-415 5 PORT LEVER NUT 25PC BOX Features: Ease of use . pull the lever up, insert a conductor and push the lever back down; Available as 2-, 3- and 5-wire connectors; Easily terminate conductors from 0.14 to 4 mm²; Connect solid, stranded and fine-stranded conductors; Save time for installers and device manufacturers; Quickly install devices with higher power consumption; Safely install long cable runs with larger conductor cross sections; Mounting carrier for installation conforms to standards; Custom carriers are possible - Approvals: DEKRA Certification B.V., CCA, NTR NL-7827, EN 60998; Lloyds Register, LR, LR22207029TA, EN 60998; UL International Germany GmbH, UL_Listed_64KA, E201573, UL 467; UL International Germany GmbH, UL, E69654, UL 486C; Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000015T, EN 60998; American Bureau of Shipping, ABS, 18-HG1755093-PDA; DEKRA Certification B.V., ENEC 05, 71-113253 REV.1, EN 60998 - Accessory Products: 207-1332; 207-4301; 221-500; 221-500/000-006; 221-500/000-053; 221-505; 221-505/000-004; 221-515; 221-515/000-004; 221-525; 221-525/000-004; 221-941; 221-941/000-006; 221-942; 221-942/000-006
