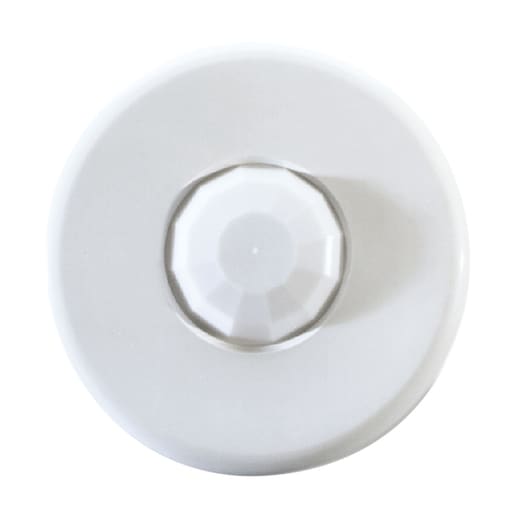

Wattstopper / Legrand - Pass & Seymour CI-24-1 Passive Infrared (PIR) Occupancy Sensor, Ceiling Mount
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 754182287031
Amperage - 37.0 mA
Applications - For Office Spaces, Classrooms, Warehouses
Catalog Number - CI241
Country of Origin - China
Packaging
1 ea
EAN
00754182287031
Part #
135474
Catalog #
CI-24-1
Commercial reference
CI-24-1
12-Digit UPC:
754182287031
Amperage:
37.0 mA
Applications:
For Office Spaces, Classrooms, Warehouses
Catalog Number:
CI241
Country of Origin:
China
ERP_productname:
WATT CI-24-1 PIR CEILOCCSENS 24 VDC/AC ISO RELAY 24-1
Family Brand Name:
WattStopper
Finish:
Gloss
Input Voltage:
24 VDC/VAC
Material:
Plastic
Mounting Type:
Wall
Sensor Type:
Passive Infrared
Sub Brand:
Pass & Seymour
Type:
Automatic-On/Off
Voltage:
24 Volt
SoneparProductId:
SKU_US_29781786
WattStopper.s CI-24 ceiling mount passive infrared occupancy sensor reduces energy waste in unoccupied building spaces by communicating occupancy to EMS and HVAC systems. Detection Signature Analysis eliminates false triggers; provides immunity to RFI and EMI. Digital time delay adjustment from 30 seconds to 30 minutes. Two levels of sensitivity (minimum or maximum) are selectable through the DIP switch. Multi-level Fresnel lens for superior desktop detection. LED indicates occupancy detection. Qualifies for ARRA-funded public works projects. Features: Digital time delay adjustment from 30 seconds to 30 minutes; Two levels of sensitivity (minimum or maximum) are selectable through the DIP switch; Multi-level Fresnel lens for superior desktop detection; LED indicates occupancy detection; BAA/TAA-compliant models available; Detection Signature Analysis eliminates false triggers; provides immunity to RFI and EMI
