Wattstopper / Legrand - Wattstopper DSW-301-W Dual Technology Wall Switch Occupancy Sensor, 120/277V - White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 754182935444

  • Applications - For Offices, Conference Rooms, Lunch/Break Rooms, Commercial

  • Catalog Number - DSW301W

  • Color - White, Gloss

  • Country of Origin - China

Packaging

  • 1 ea

EAN

00754182935444

Part #

223411

Catalog #

DSW-301-W

Commercial reference

DSW-301-W

12-Digit UPC:

754182935444

Applications:

For Offices, Conference Rooms, Lunch/Break Rooms, Commercial

Catalog Number:

DSW301W

Color:

White, Gloss

Country of Origin:

China

Depths:

1.83 Inch

ERP_productname:

WATT DSW-301-W DUAL TECH WALL SWITCH OCCUPANCY SENSOR, 120/277V, WHITE

Family Brand Name:

WattStopper

Finish:

Matte

Heights:

2.73 Inch

Length:

2.73 Inch

Material:

Plastic

Mounting Type:

Surface

Sensor Type:

Passive Infrared

Sub Brand:

Pass & Seymour

Type:

Dual Technology, Wall Switch

Voltage:

120/277 VAC

Wattage:

1200 Watt

Widths:

1.76 in

SoneparProductId:

SKU_US_25371713

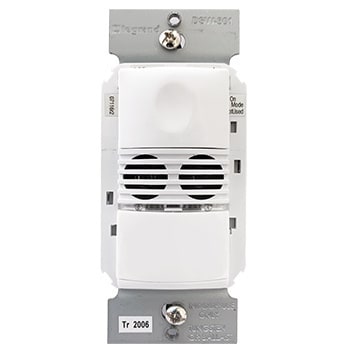

The DSW-301 Dual Technology Wall Switch Occupancy Sensor turns lights OFF and ON based on occupancy. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies. The DSW-301 replaces existing wall switches and fits behind a standard decorator wall plate. (white) Features: Selectable walk-through mode turns lights off three minutes after initial occupancy if no motion is detected after the first 30 seconds; Test mode allows quick and easy adjustments; Selectable audible alert for impending shutoff; In automatic mode, sensor returns automatically to Auto-ON after lights are turned off manually; ideal for presentations; Four occupancy logic options to customize control to meet application needs; Zero-crossing for long relay life; Vandal resistant lens combines precise coverage with durability
