Burndy YGF292N Compression Grounding Plate; Copper; 2-Hole; Accommodates: #2 AWG - 250 kcmil; 1/2" Stud; 1-3/4" Stud Hole Spacing

Manufacturer: Burndy | Catalog # YGF29-2N | Echo Electric Part # 109084
$145.06/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet
Copper Compression Grounding Plate, 2 AWG - 250 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing.

Technical Information

Applications
Used to Position the Grounding Plate on a Threaded Rod Prior to Placement of the Concrete
Conductor Size
1 AWG
Conductor Type
CU C Str-Size
Material
Copper
Mounting Type
(2) 1-3/4 in Hole
Plated?
No
Plating Type
Unplated
Standard
ANSI C-73
Type
YGF
Wire Size
2 AWG-250 kcmil

Manufacturer Information

Brand
Burndy
Sub Brand
Grounding and Bonding

General Product Info

12-Digit UPC
781810220504
GTiN
00781810220504
Product UPC
78181022050

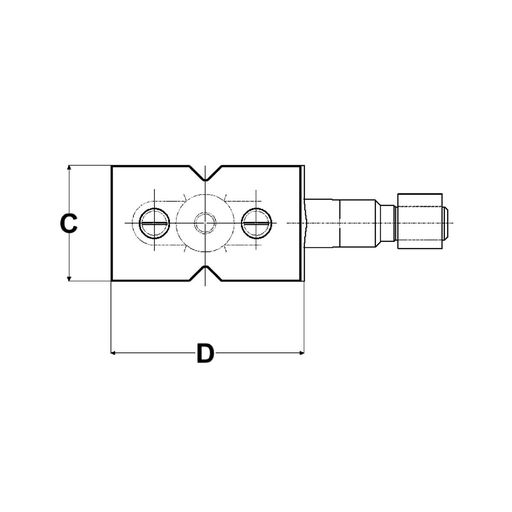

Dimensions

Height
3.62 Inch
Length
5.78 Inch
Overall Length
147 mm
Width
2.00 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Compression Grounding Plate designed for the rigors of concrete construction
  • Made of high strength, high-conductivity cast copper alloy body
  • Plate comes with a tapped hole on the underside for ease of positioning prior to pouring concrete
  • UL467 Listed, Acceptable for direct burial in earth or concrete
  • Prefilled with oxide inhibiting compound and strip sealed
